House Pack: 54m, 1-Level (L-Shaped)

From: $11,397.21 + GST

53.76m Total Length x 0.73m Deep x 3m High
1 Level
22 Bays

For a video tour, scroll down.

Ringlock Modular Scaffolding System

Finance available.

House packs can be customised to your exact needs! Send the measurements of your project, and we’ll design a scaffold specially for it, with 3D models.

Base Jacks, Plates & Caster Wheels

Scaffolding screw jacks for sale in every variety!

From adjustable 600mm jack bases to 800mm adjustable base jacks – not to mention swivel jacks (which can be adjusted to any angle), plus castor wheels and more.

Whatever you need, you can select your solution below!

With New Zealand-wide delivery from our Auckland warehouse.

600 mm Adjustable Jack Base

Base Collar

$8.58 + GST each

Ringlock Diagonal Braces

1.40M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

2.07M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

3.07M×2.0M Ringlock Diagonal

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

0.73M Ringlock Ledger

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

1.40M Ringlock Ledger

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

2.07M Ringlock Ledger

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

3.07M Ringlock Ledger

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

0.73M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

1.40M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

2.07M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

3.07M×0.32(W)

Ringlock Standard with Spigot

Vertical standard for ringlock scaffolding.

Rosettes every 1/2 meter for maximum versatility.

Spigot built-in, for connecting multiple standards.

Made of premium hot-dip galvanised steel, for maximum durability and minimum corrosion.

2.0M Ringlock Standard with Spigot

Ringlock Standard with Spigot

Vertical standard for ringlock scaffolding.

Rosettes every 1/2 meter for maximum versatility.

Spigot built-in, for connecting multiple standards.

Made of premium hot-dip galvanised steel, for maximum durability and minimum corrosion.

3.0M Ringlock Standard with Spigot

Toeboards (L-Shaped) – optional

0.73m x 0.15m

Toeboards (L-Shaped) – optional

1.40m x 0.15m

Toeboards (L-Shaped) – optional

2.07m x 0.15m

Toeboards (L-Shaped) – optional

3.07m x 0.15m

Description

53.76m Total Length x 0.73m Deep x 3m High
1 Level
22 Bays
Ringlock Modular Scaffolding System

Take a tour!

Components:
Base Jack 0.6m Adjustable | 44pcs
Base Collar | 44pcs
Diagonal Brace 1.40m | 2pcs
Diagonal Brace 2.07m | 1pcs
Diagonal Brace 3.07m | 3pcs
Horizontal Ledger 0.73m | 73pcs
Horizontal Ledger 1.40m | 9pcs
Horizontal Ledger 2.07m | 17pcs
Horizontal Ledger 3.07m | 46pcs
Steel Deck 0.73m | 8pcs
Steel Deck 1.40m | 4pcs
Steel Deck 2.07m | 8pcs
Steel Deck 3.07m | 24pcs
Vertical Standard 2m | 18pcs
Vertical Standard 3m | 26pcs

Extras:
Steel Toeboard 0.73m | 8pcs | $150.88
Steel Toeboard 1.40m | 2pcs | $54.82
Steel Toeboard 2.07m | 4pcs | $137.36
Steel Toeboard 3.07m | 12pcs | $538.92

Total Weight without Extras: 2704.95kg
Total Weight with Extras: 2884.37kg

Finance available.

House packs can be customised to your exact needs! Send the measurements of your project, and we’ll design a scaffold specially for it, complete with 3D models.

Additional information

Base Jacks, Plates & Caster Wheels

Weight N/A
Dimensions N/A
Options

600 mm Adjustable Jack Base

Base Collar

Weight 1.72 kg
Dimensions 28 × 5.7 × 0.35 cm

Ringlock Diagonal Braces

Weight N/A
Dimensions N/A
Diagonal Options

1.40M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

Weight N/A
Dimensions N/A
Diagonal Options

2.07M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

Weight N/A
Dimensions N/A
Diagonal Options

3.07M×2.0M Ringlock Diagonal

Ledger "O"

Weight N/A
Dimensions N/A
Ledger Options

0.73M Ringlock Ledger

Ledger "O"

Weight N/A
Dimensions N/A
Ledger Options

1.40M Ringlock Ledger

Ledger "O"

Weight N/A
Dimensions N/A
Ledger Options

2.07M Ringlock Ledger

Ledger "O"

Weight N/A
Dimensions N/A
Ledger Options

3.07M Ringlock Ledger

Scaffolding Planks Steel (“O” Hook) Ringlock

Weight N/A
Dimensions N/A
Steel Deck Options

0.73M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Weight N/A
Dimensions N/A
Steel Deck Options

1.40M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Weight N/A
Dimensions N/A
Steel Deck Options

2.07M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Weight N/A
Dimensions N/A
Steel Deck Options

3.07M×0.32(W)

Ringlock Standard with Spigot

Weight N/A
Dimensions N/A
Standard Options

2.0M Ringlock Standard with Spigot

Ringlock Standard with Spigot

Weight N/A
Dimensions N/A
Standard Options

3.0M Ringlock Standard with Spigot

Toeboards (L-Shaped)

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M

Toeboards (L-Shaped)

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M

Toeboards (L-Shaped)

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M

Toeboards (L-Shaped)

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M

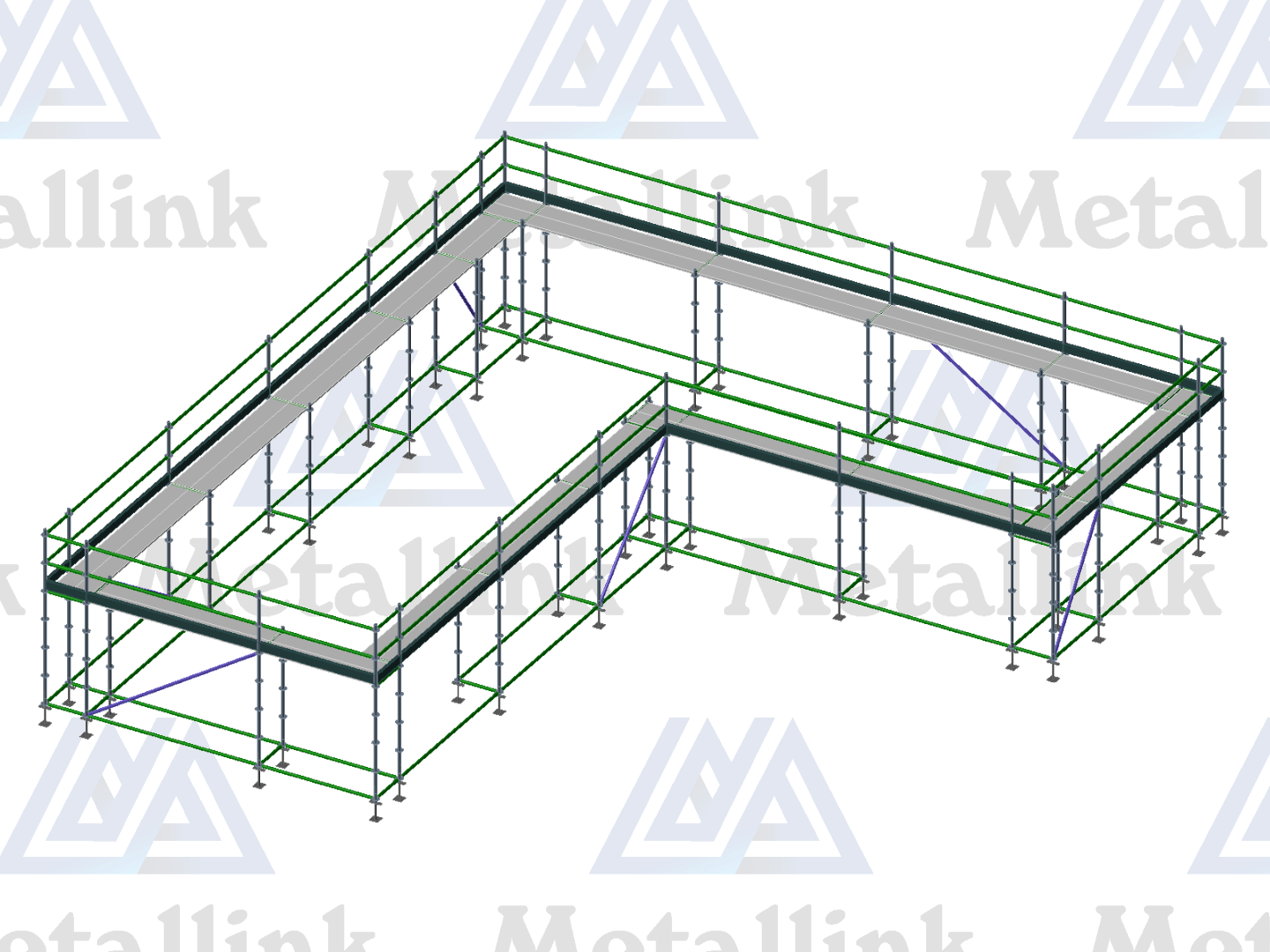

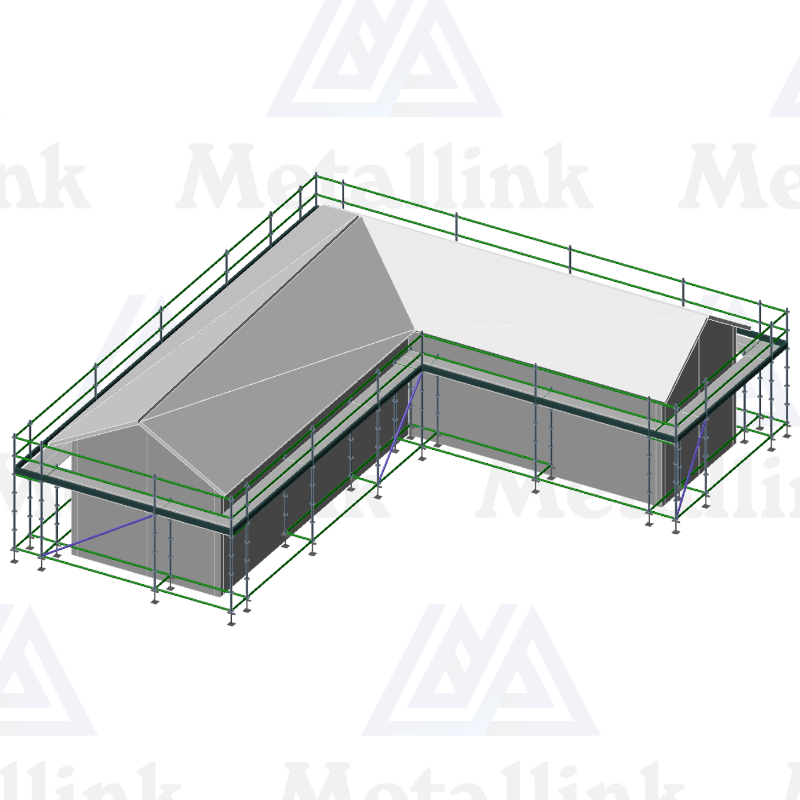

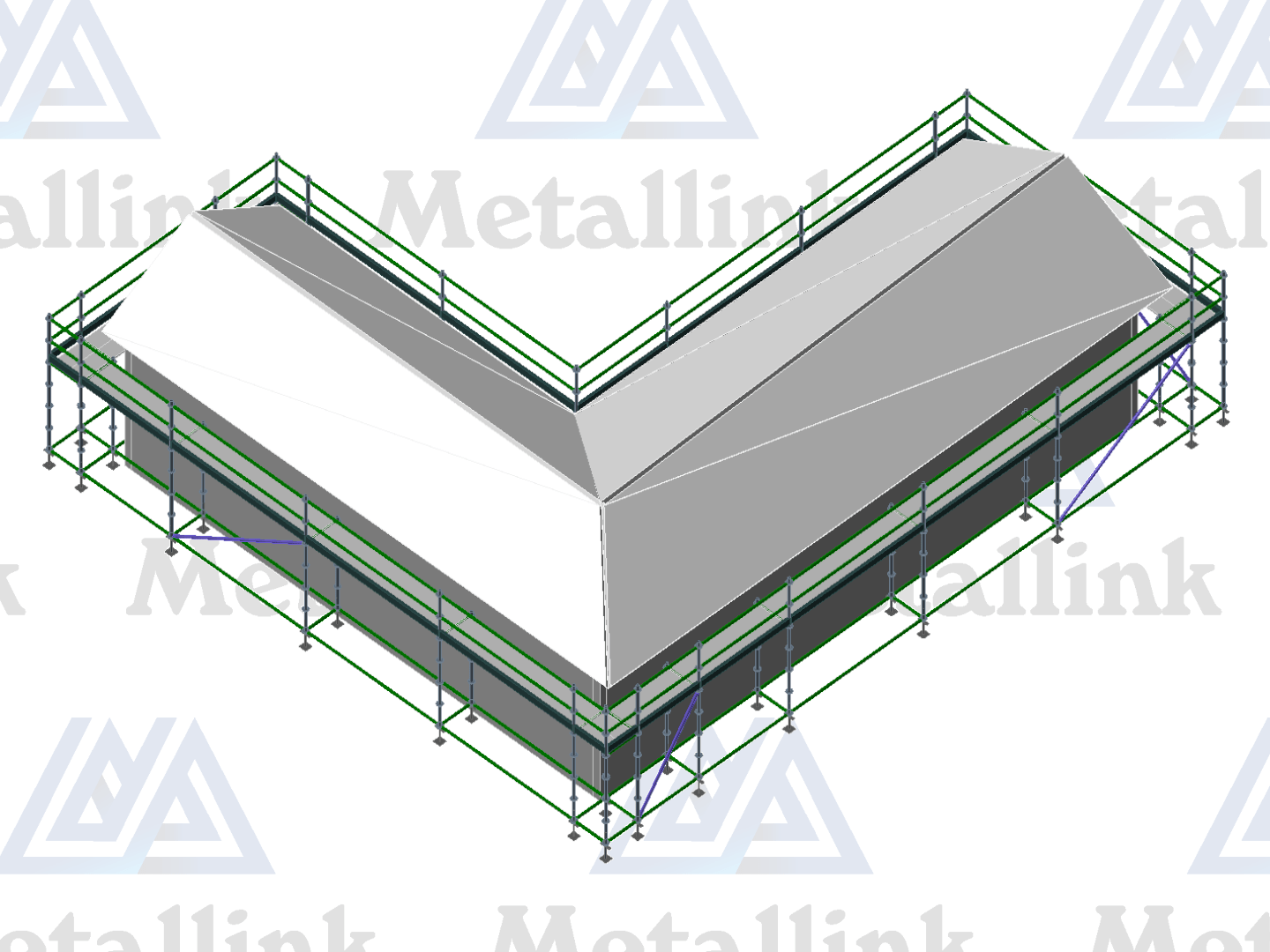

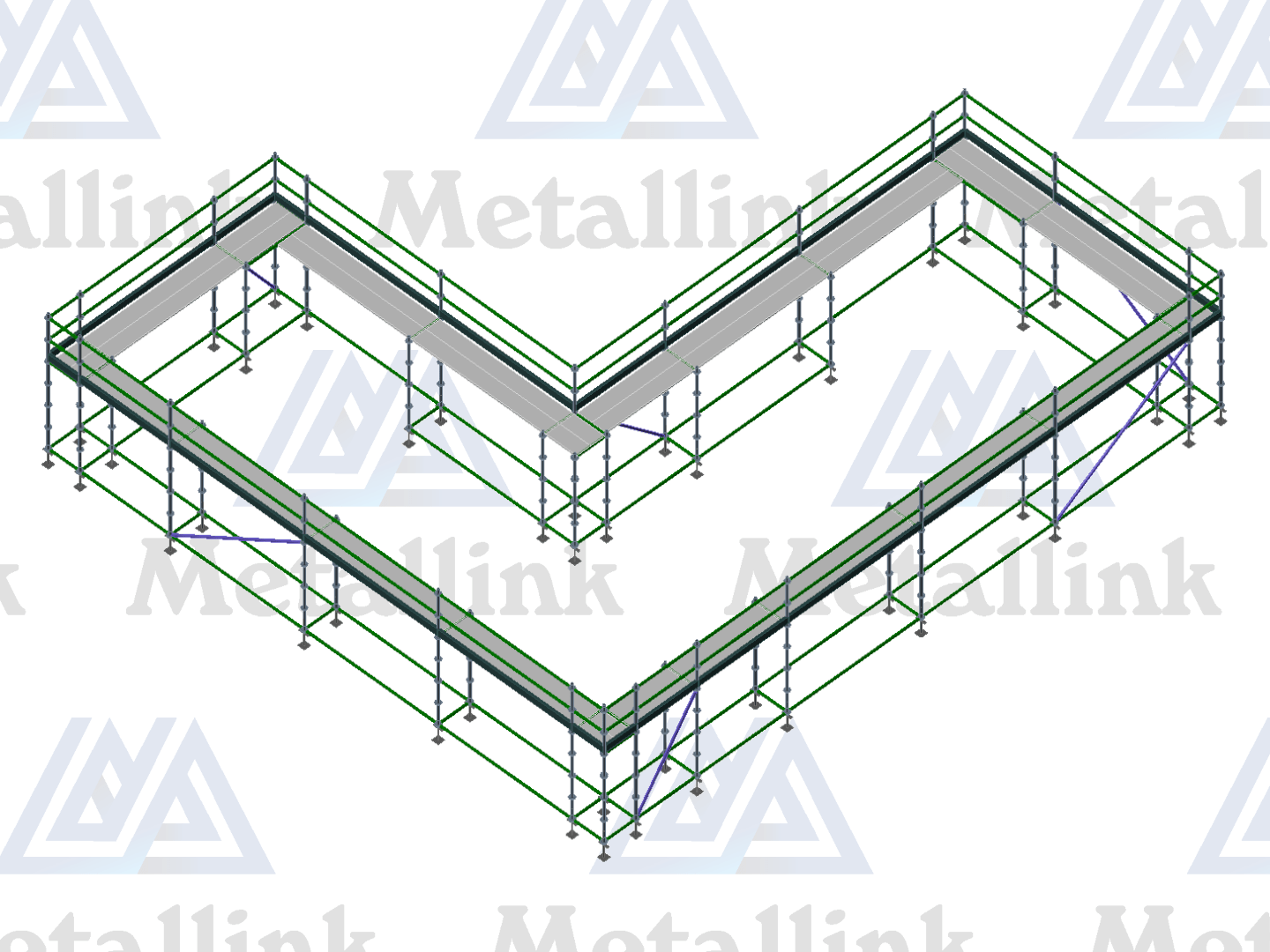

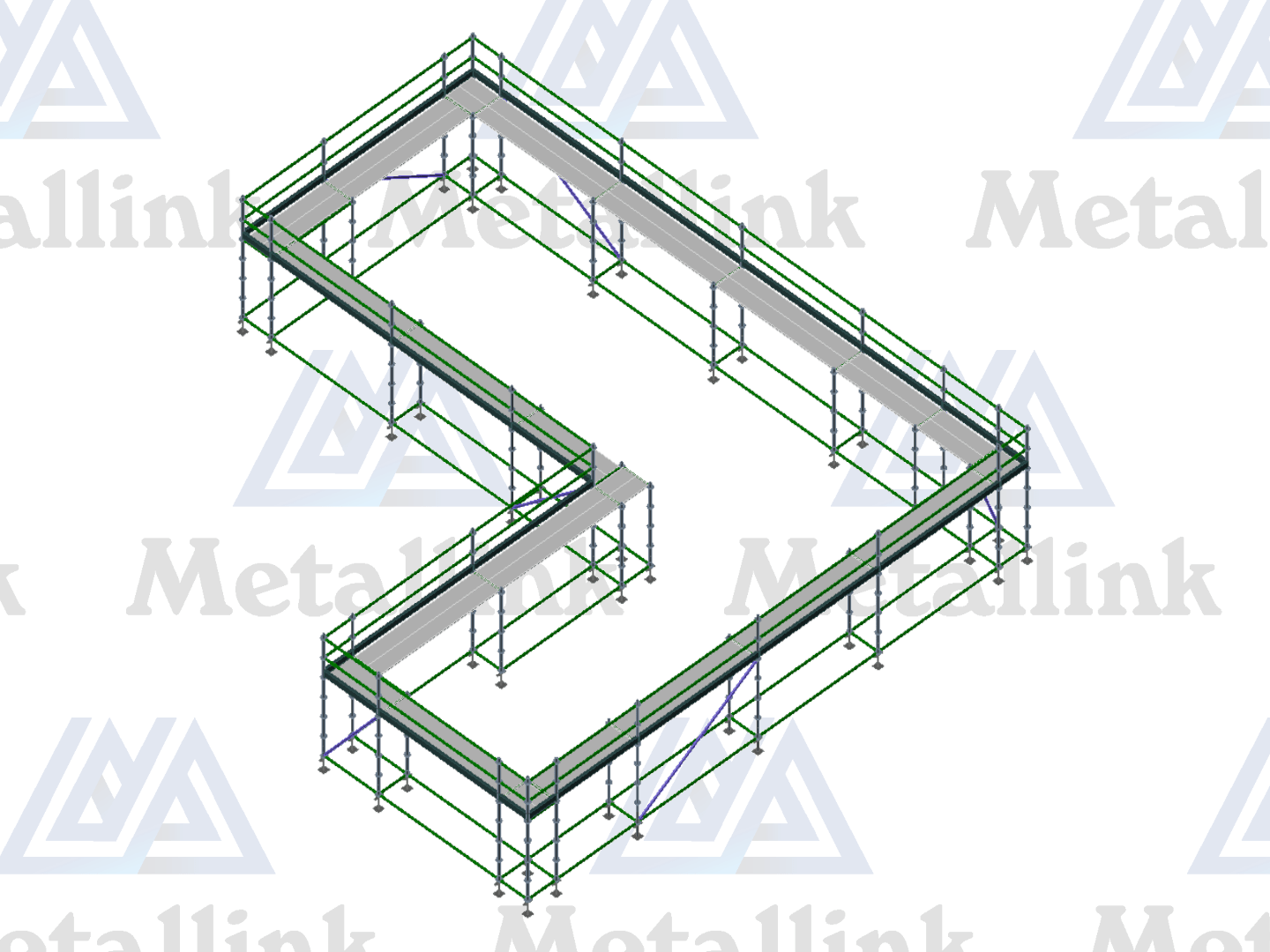

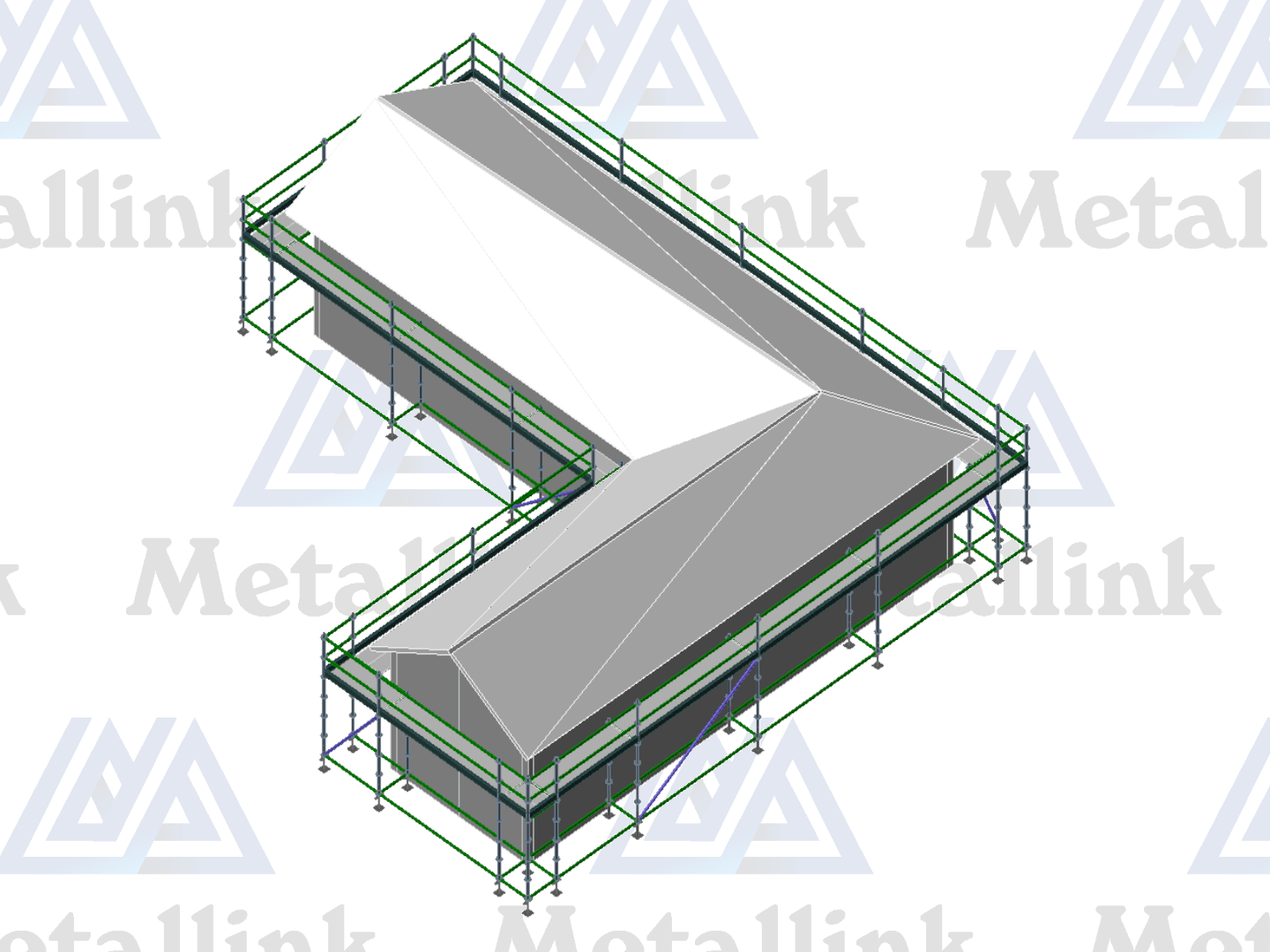

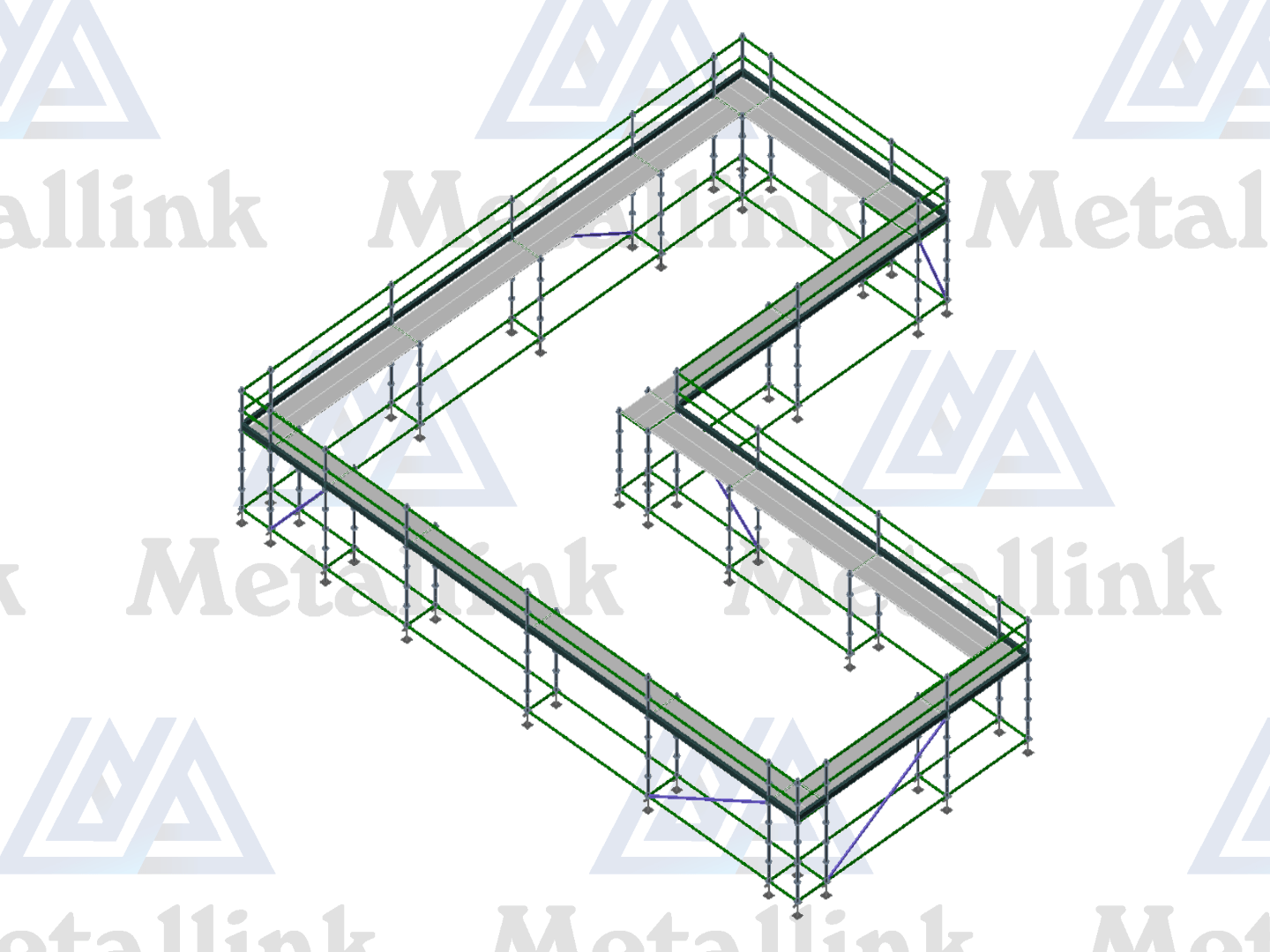

Layout diagram of 54m ringlock scaffolding for sale, set up around a house.
House Pack: 54m, 1-Level (L-Shaped)
From: $11,397.21 + GST
