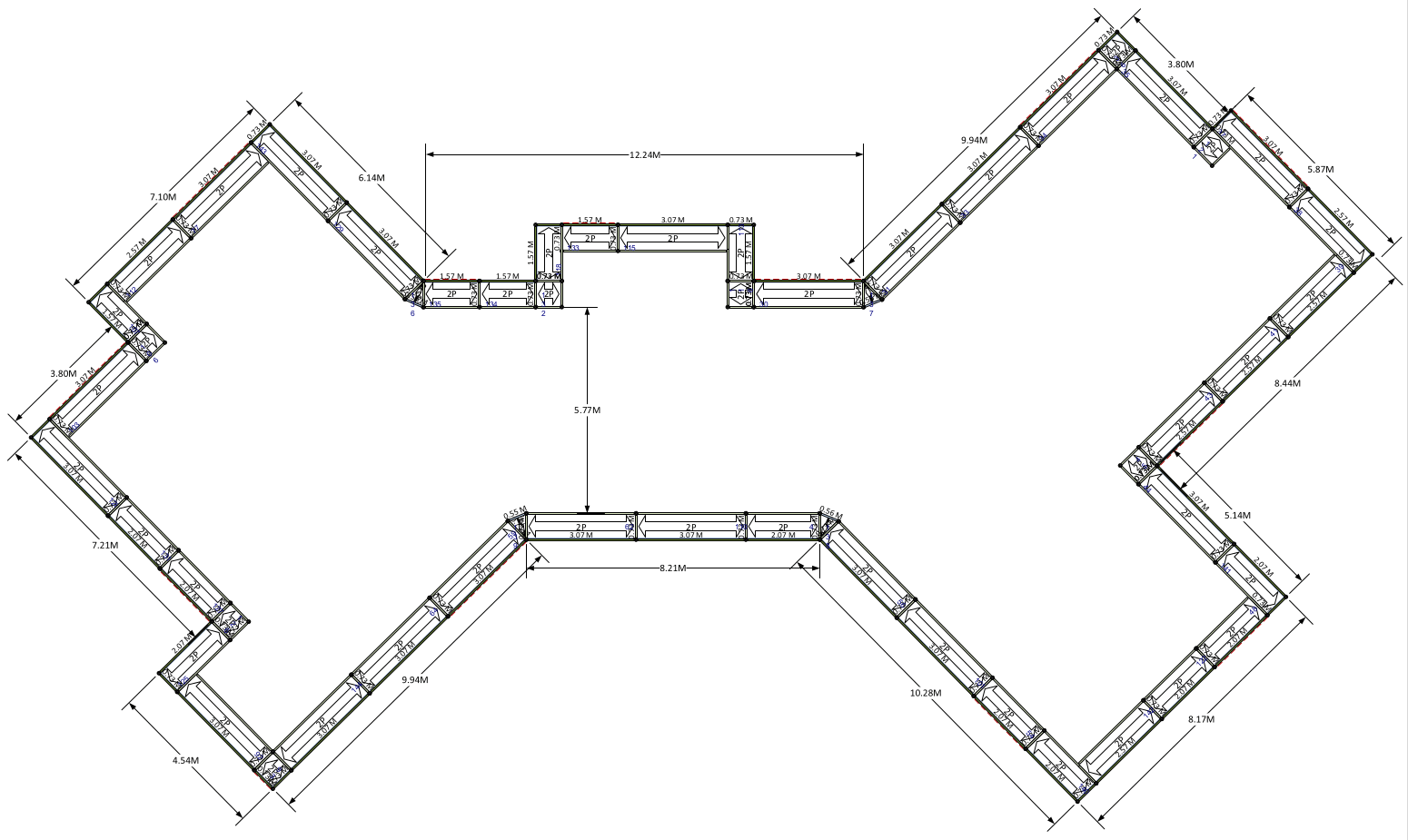

Layout diagram of a 4-in-1 developer's package of ringlock scaffolding for sale in New Zealand.

Developer’s Pack: 4-in-1 Transforming Ringlock Scaffold, 118m, 2-Level

From: $44,679.71 + GST

Basically, this is a scaffolding package to do anything your heart desires. With a variety of bay sizes plus accessories for unusual corners, we’ve created this transforming package for four main modes: in mode 1, build a massive, 118m double-level scaffold. In mode 2, split this pack into two separate scaffolds – each two levels high. In mode 3, you can use this package to build a four-level scaffold, still nearly 60m in total length. And we’ve designed this package with the most complex floor plans in mind. Whatever project comes your way, this package will have you covered!

For a video tour, scroll down.

Finance available.

House packs can be customised to your exact needs! Send the measurements of your project, and we’ll design a scaffold specially for it, with 3D models.

Categories: , , ,

Base Jacks, Plates & Caster Wheels

Scaffolding screw jacks for sale in every variety!

From adjustable 600mm jack bases to 800mm adjustable base jacks – not to mention swivel jacks (which can be adjusted to any angle), plus castor wheels and more.

Whatever you need, you can select your solution below!

With New Zealand-wide delivery from our Auckland warehouse.

600 mm Adjustable Jack Base

Base Collar

Base Collar 250mm

Ringlock Diagonal Braces

0.73M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

1.57M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

2.07M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

2.57M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

3.07M×2.0M Ringlock Diagonal

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

0.73M Ringlock Ledger

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

1.57M Ringlock Ledger

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

2.07M Ringlock Ledger

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

2.57M Ringlock Ledger

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

3.07M Ringlock Ledger

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

0.73M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

1.57M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

2.07M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

2.57M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

3.07M×0.32(W)

Ringlock Standard with Spigot

Vertical standard for ringlock scaffolding.

Rosettes every 1/2 meter for maximum versatility.

Spigot built-in, for connecting multiple standards.

Made of premium hot-dip galvanised steel, for maximum durability and minimum corrosion.

1.0M Ringlock Standard with Spigot

Ringlock Standard with Spigot

Vertical standard for ringlock scaffolding.

Rosettes every 1/2 meter for maximum versatility.

Spigot built-in, for connecting multiple standards.

Made of premium hot-dip galvanised steel, for maximum durability and minimum corrosion.

2.0M Ringlock Standard with Spigot

Ringlock Standard with Spigot

Vertical standard for ringlock scaffolding.

Rosettes every 1/2 meter for maximum versatility.

Spigot built-in, for connecting multiple standards.

Made of premium hot-dip galvanised steel, for maximum durability and minimum corrosion.

3.0M Ringlock Standard with Spigot

Ringlock Standard with Spigot

Vertical standard for ringlock scaffolding.

Rosettes every 1/2 meter for maximum versatility.

Spigot built-in, for connecting multiple standards.

Made of premium hot-dip galvanised steel, for maximum durability and minimum corrosion.

4.0M Ringlock Standard with Spigot

Couplers & Accessories

Swivel Coupler with Cast Steel Wedge

Toeboards

0.73m x 0.15m

Toeboards

1.57m x 0.15m

Toeboards

2.07m x 0.15m

Toeboards

2.57m x 0.15m

Toeboards

3.07m x 0.15m

Description



Basically, this is a scaffolding package to do anything your heart desires. With a variety of bay sizes plus accessories for unusual corners, we’ve created this transforming package for four main modes: in mode 1, build a massive, 118m double-level scaffold. In mode 2, split this pack into two separate scaffolds – each two levels high. In mode 3, you can use this package to build a four-level scaffold, still nearly 60m in total length. And we’ve designed this package with the most complex floor plans in mind. Whatever project comes your way, this kit will have you covered!

Take a tour!

Mode 1:
118.33m Total Length x 0.73m Deep x 5m High
2 Levels
54 Bays

Mode 2:
2 Scaffolds
118.79m Total Length (Scaffold A: 62.15m; Scaffold B: 56.64m) x 0.73m Deep x 5m High
2 Levels
53 Bays

Mode 3:
58.53m Total Length x 0.73m Deep x 9m High
4 Levels
28 Bays

Ringlock Modular Scaffolding System

Components:
Base Jack 0.6m Adjustable | 105pcs
Base Collar | 105pcs
Diagonal Brace 0.73m | 4pcs
Diagonal Brace 1.57m | 4pcs
Diagonal Brace 2.07m | 8pcs
Diagonal Brace 2.57m | 4pcs
Diagonal Brace 3.07m | 12pcs
Horizontal Ledger 0.73m | 258pcs
Horizontal Ledger 1.57m | 43pcs
Horizontal Ledger 2.07m | 59pcs
Horizontal Ledger 2.57m | 38pcs
Horizontal Ledger 3.07m | 135pcs
Steel Deck 0.73m | 32pcs
Steel Deck 1.57m | 24pcs
Steel Deck 2.07m | 36pcs
Steel Deck 2.57m | 24pcs
Steel Deck 3.07m | 84pcs
Vertical Standard 1m | 3pcs
Vertical Standard 2m | 56pcs
Vertical Standard 3m | 56pcs
Vertical Standard 4m | 49pcs
Steel Tube 0.5m | 5pcs
Steel Tube 1m | 28pcs
Timber Plank 0.6m | 12pcs
Timber Plank 0.9m | 20pcs
Wedge-Head Coupler | 66pcs

Extras:
Steel Toeboard 0.73m | 36pcs | $678.96*
Steel Toeboard 1.57m | 12pcs | $350.76*
Steel Toeboard 2.07m | 16pcs | $549.44*
Steel Toeboard 2.57m | 12pcs | $452.76*
Steel Toeboard 3.07m | 42pcs | $1886.22*
Wood Toeboard 0.3m | 4pcs
Wood Toeboard 0.61m | 4pcs

Total Weight without Extras: 10782.31kg
Total Weight with Extras: 11573.43kg

Finance available.

House packs can be customised to your exact needs! Send the measurements of your project, and we’ll design a scaffold specially for it, complete with 3D models.

Additional information

Base Jacks, Plates & Caster Wheels

Weight N/A
Dimensions N/A
Options

600 mm Adjustable Jack Base

Base Collar

Weight 1.72 kg
Dimensions 28 × 5.7 × 0.35 cm
Base Collar

Base Collar 250mm

Ringlock Diagonal Braces

Weight N/A
Dimensions N/A
Diagonal Options

0.73M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

Weight N/A
Dimensions N/A
Diagonal Options

1.57M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

Weight N/A
Dimensions N/A
Diagonal Options

2.07M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

Weight N/A
Dimensions N/A
Diagonal Options

2.57M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

Weight N/A
Dimensions N/A
Diagonal Options

3.07M×2.0M Ringlock Diagonal

Ledger "O"

Weight N/A
Dimensions N/A
Ledger Options

0.73M Ringlock Ledger

Ledger "O"

Weight N/A
Dimensions N/A
Ledger Options

1.57M Ringlock Ledger

Ledger "O"

Weight N/A
Dimensions N/A
Ledger Options

2.07M Ringlock Ledger

Ledger "O"

Weight N/A
Dimensions N/A
Ledger Options

2.57M Ringlock Ledger

Ledger "O"

Weight N/A
Dimensions N/A
Ledger Options

3.07M Ringlock Ledger

Scaffolding Planks Steel (“O” Hook) Ringlock

Weight N/A
Dimensions N/A
Steel Deck Options

0.73M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Weight N/A
Dimensions N/A
Steel Deck Options

1.57M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Weight N/A
Dimensions N/A
Steel Deck Options

2.07M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Weight N/A
Dimensions N/A
Steel Deck Options

2.57M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Weight N/A
Dimensions N/A
Steel Deck Options

3.07M×0.32(W)

Ringlock Standard with Spigot

Weight N/A
Dimensions N/A
Standard Options

1.0M Ringlock Standard with Spigot

Ringlock Standard with Spigot

Weight N/A
Dimensions N/A
Standard Options

2.0M Ringlock Standard with Spigot

Ringlock Standard with Spigot

Weight N/A
Dimensions N/A
Standard Options

3.0M Ringlock Standard with Spigot

Ringlock Standard with Spigot

Weight N/A
Dimensions N/A
Standard Options

4.0M Ringlock Standard with Spigot

Couplers & Accessories

Weight N/A
Coupler Options

Swivel Coupler with Cast Steel Wedge

Toeboards

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M

Toeboards

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M

Toeboards

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M

Toeboards

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M

Toeboards

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M
