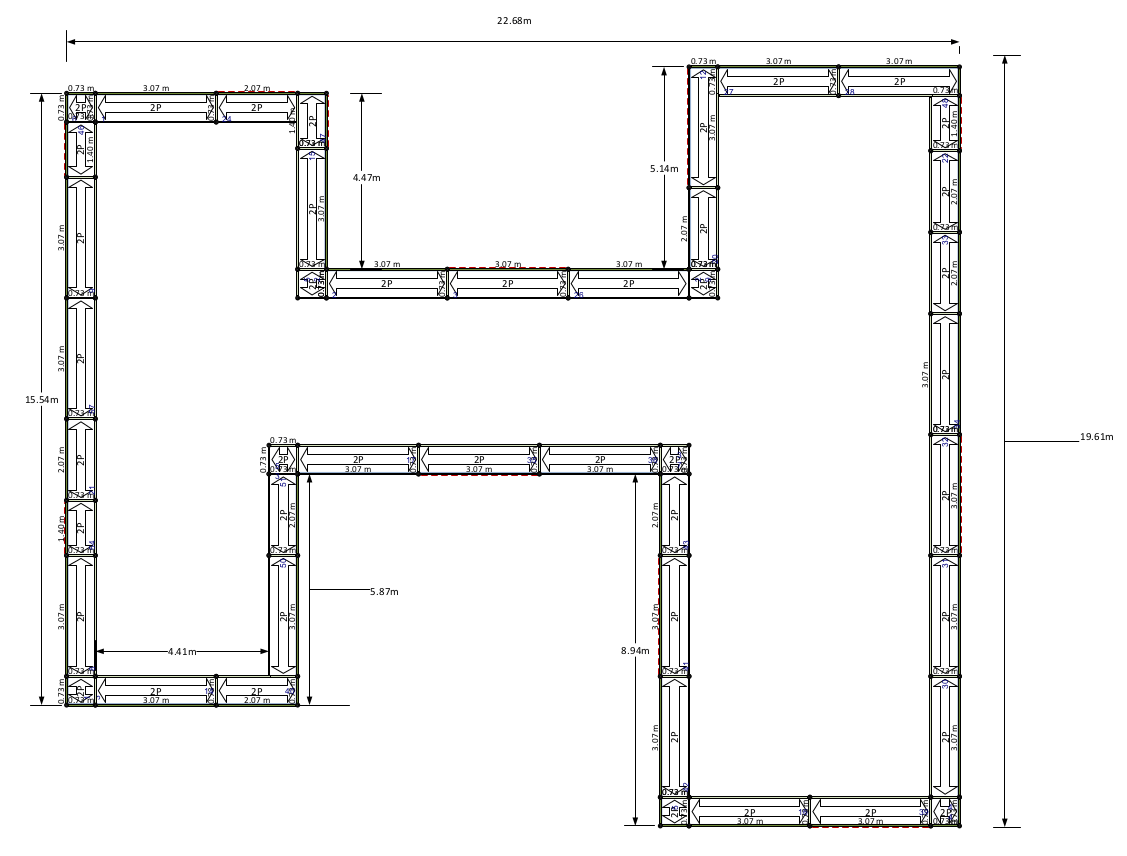

Layout diagram of a 105m Developer's Package of ringlock scaffolding around a typical New Zealand house.

Developer’s Pack: 4-in-1 Transforming Ringlock Scaffold, 105m, 1-Level

From: $22,662.77 + GST

The ultimate all-in-one developer’s scaffolding package. It can’t be beat for versatility and usefulness. Four scaffolds for the price of one: make a huge 105 lineal meter scaffold, or make two separate 53m scaffolds – or make one two-storey 53m scaffold. Your imagination’s the limit. With a versatile array of bay sizes, this kit comes with enough options and enough ringlock scaffolding to adapt to just about any project.

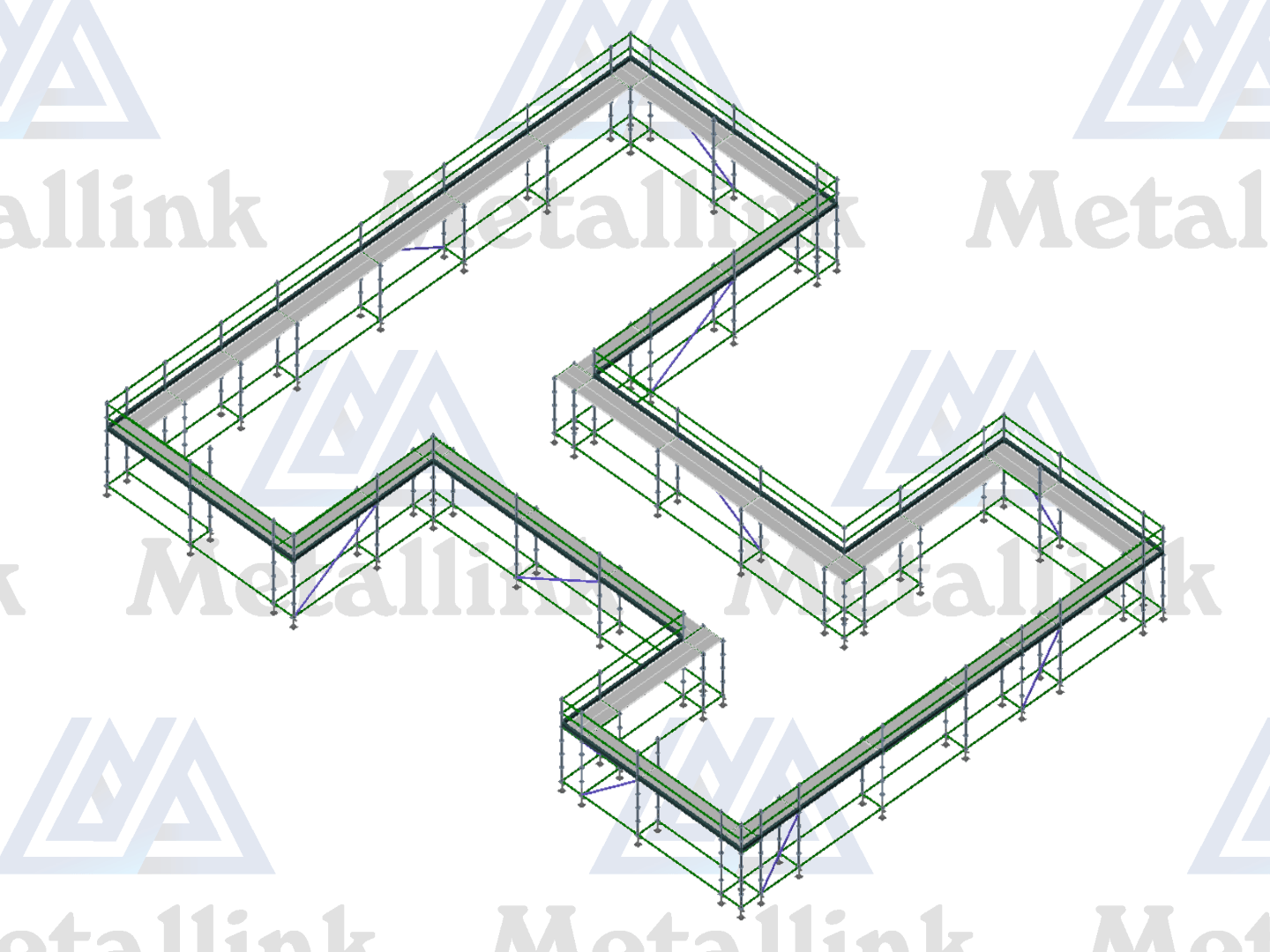

Mode 1:
104.93m Total Length x 0.73m Deep x 3m High
1 Level
44 Bays

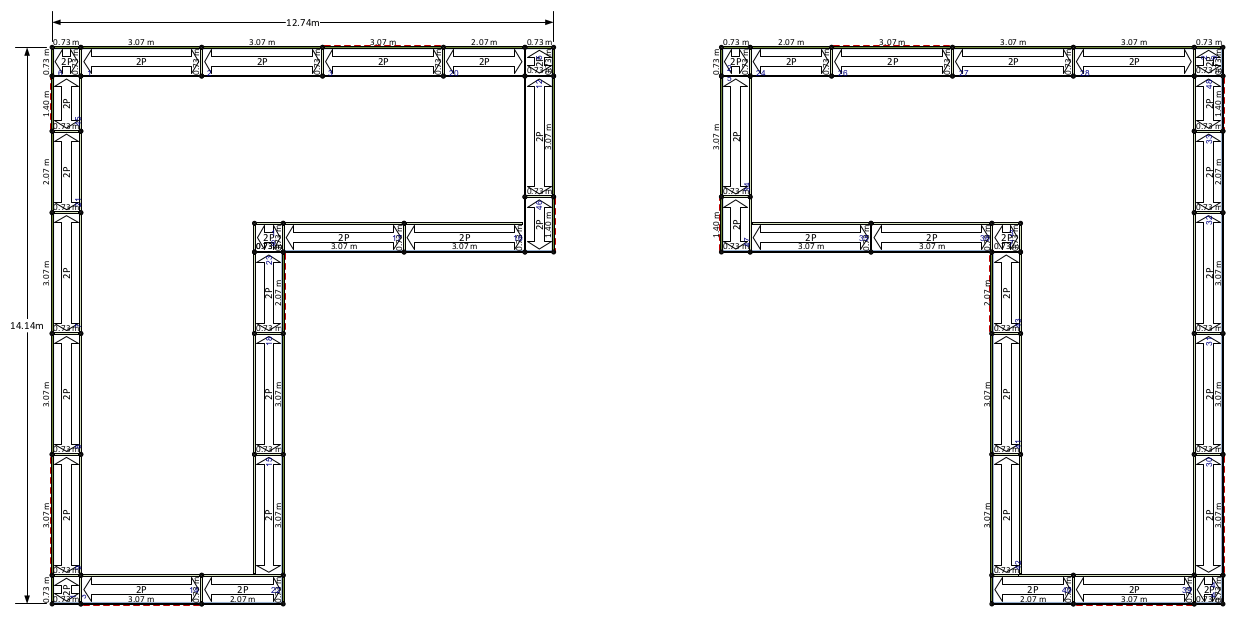

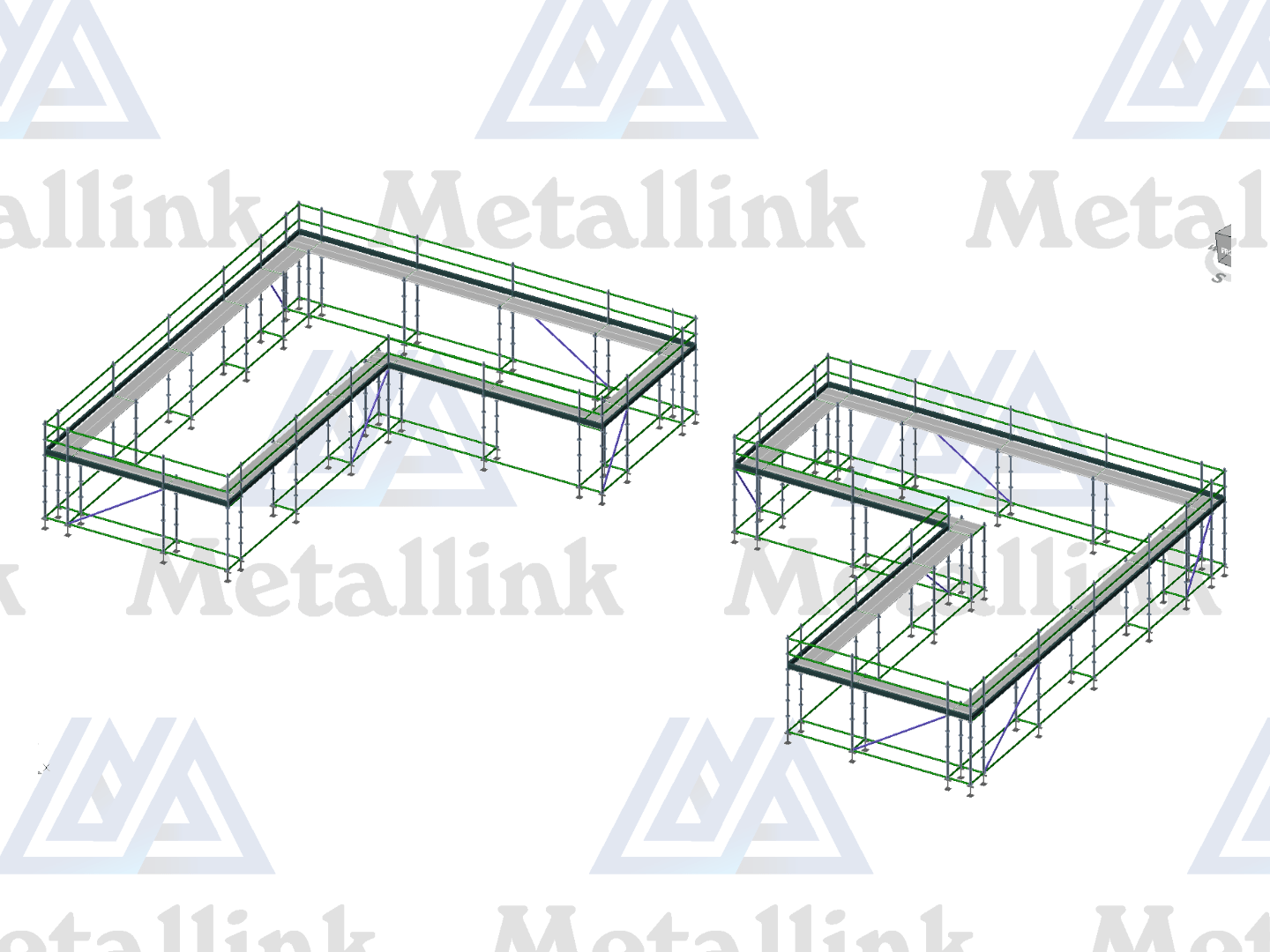

Mode 2:
107.52m Total Length (split into two 53.76m scaffolds) x 0.73m Deep x 3m High
1 Level
44 Bays
2 Scaffolds

Mode 3:
53.76m Total Length x 0.73m Deep x 5m High
2 Levels
22 Bays

For a video tour, scroll down.

Ringlock Modular Scaffolding System

Finance available.

House packs can be customised to your exact needs! Send the measurements of your project, and we’ll design a scaffold specially for it, with 3D models.

Categories: , , ,

Base Jacks, Plates & Caster Wheels

Scaffolding screw jacks for sale in every variety!

From adjustable 600mm jack bases to 800mm adjustable base jacks – not to mention swivel jacks (which can be adjusted to any angle), plus castor wheels and more.

Whatever you need, you can select your solution below!

With New Zealand-wide delivery from our Auckland warehouse.

600 mm Adjustable Jack Base

Base Collar

Base Collar 250mm

Ringlock Diagonal Braces

1.40M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

2.07M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

3.07M×2.0M Ringlock Diagonal

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

0.73M Ringlock Ledger

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

1.40M Ringlock Ledger

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

2.07M Ringlock Ledger

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

3.07M Ringlock Ledger

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

0.73M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

1.40M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

2.07M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

3.07M×0.32(W)

Ringlock Standard with Spigot

Vertical standard for ringlock scaffolding.

Rosettes every 1/2 meter for maximum versatility.

Spigot built-in, for connecting multiple standards.

Made of premium hot-dip galvanised steel, for maximum durability and minimum corrosion.

2.0M Ringlock Standard with Spigot

Ringlock Standard with Spigot

Vertical standard for ringlock scaffolding.

Rosettes every 1/2 meter for maximum versatility.

Spigot built-in, for connecting multiple standards.

Made of premium hot-dip galvanised steel, for maximum durability and minimum corrosion.

3.0M Ringlock Standard with Spigot

Toeboards

0.73m x 0.15m

Toeboards

1.40m x 0.15m

Toeboards

2.07m x 0.15m

Toeboards

3.07m x 0.15m

Description

The ultimate all-in-one developer’s scaffolding package. It can’t be beat for versatility and usefulness. Four scaffolds for the price of one: make a huge 105 lineal meter scaffold, or make two separate 53m scaffolds – or make one two-storey 53m scaffold. Your imagination’s the limit. With a versatile array of bay sizes, this kit comes with enough options and enough ringlock scaffolding to adapt to just about any project.

Take a tour!

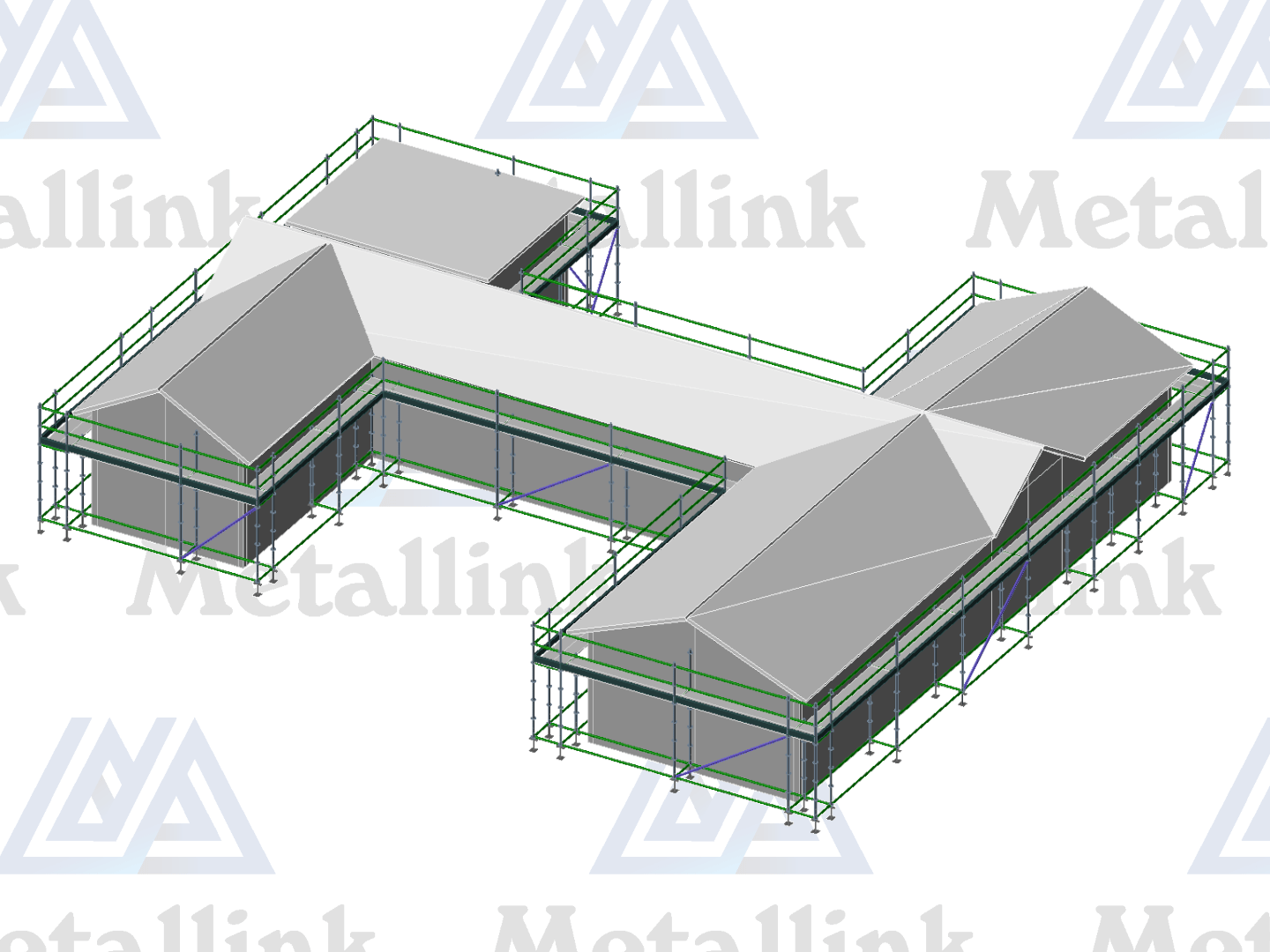

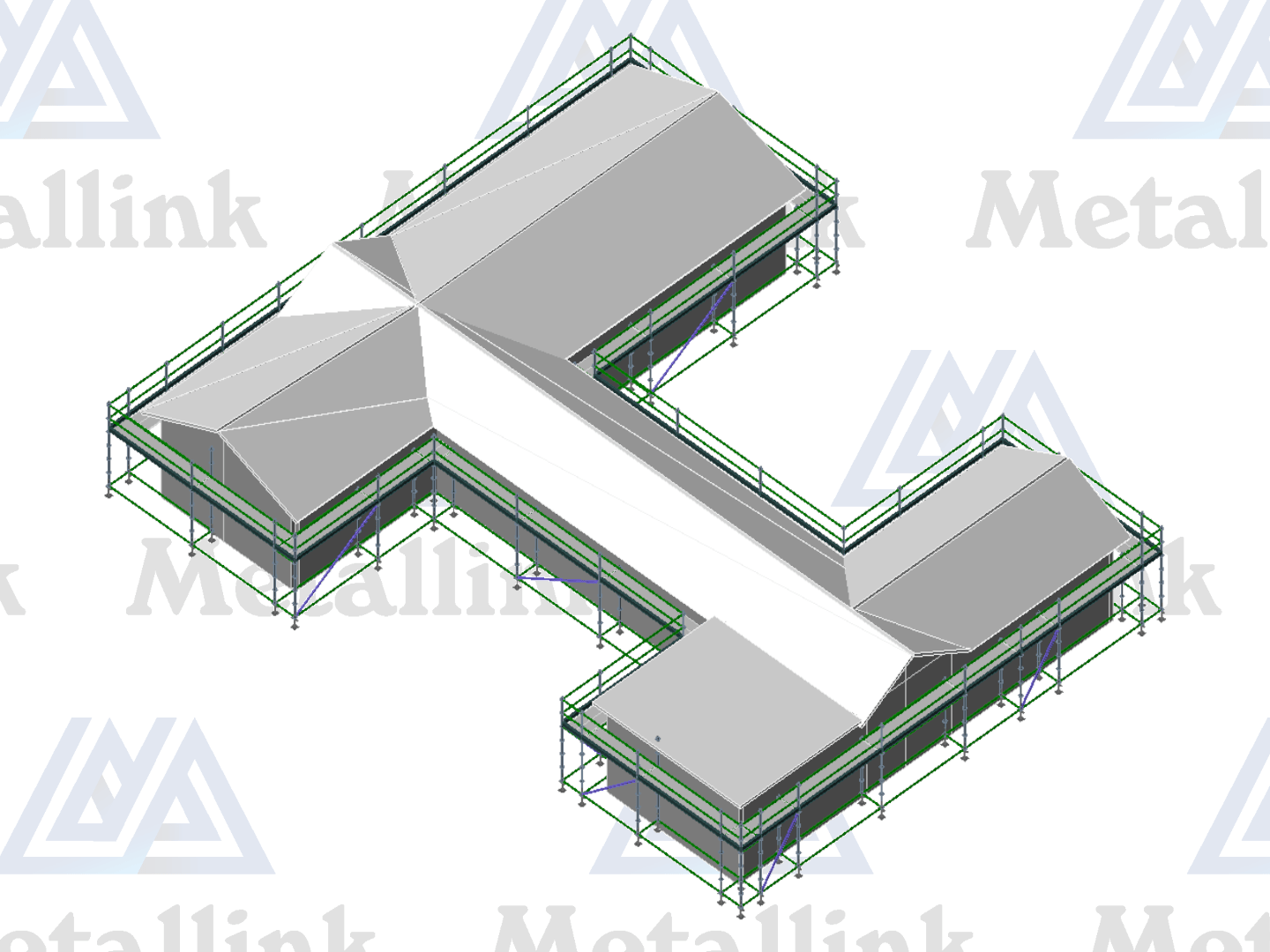

Mode 1:
104.93m Total Length x 0.73m Deep x 3m High
1 Level
44 Bays

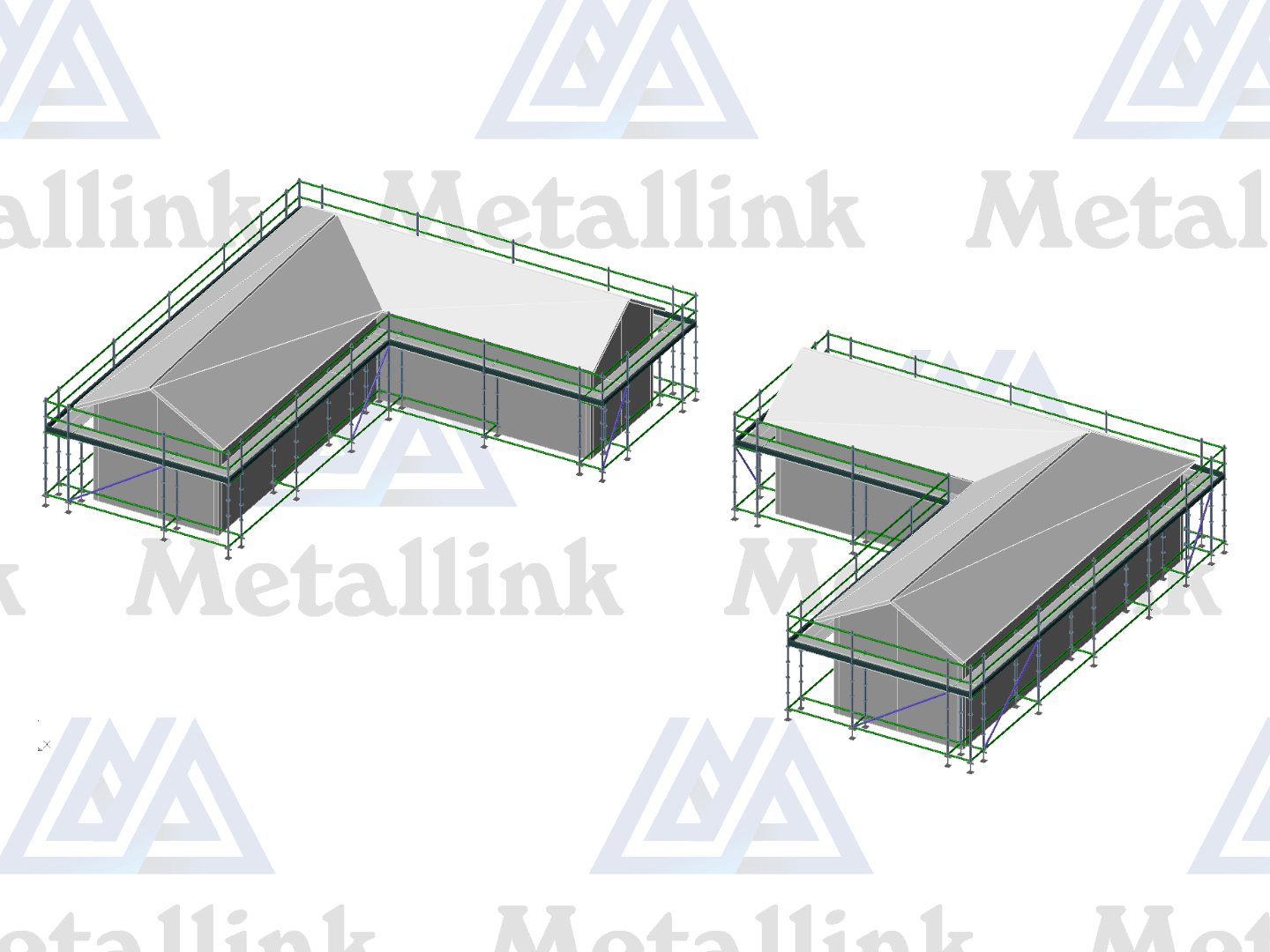

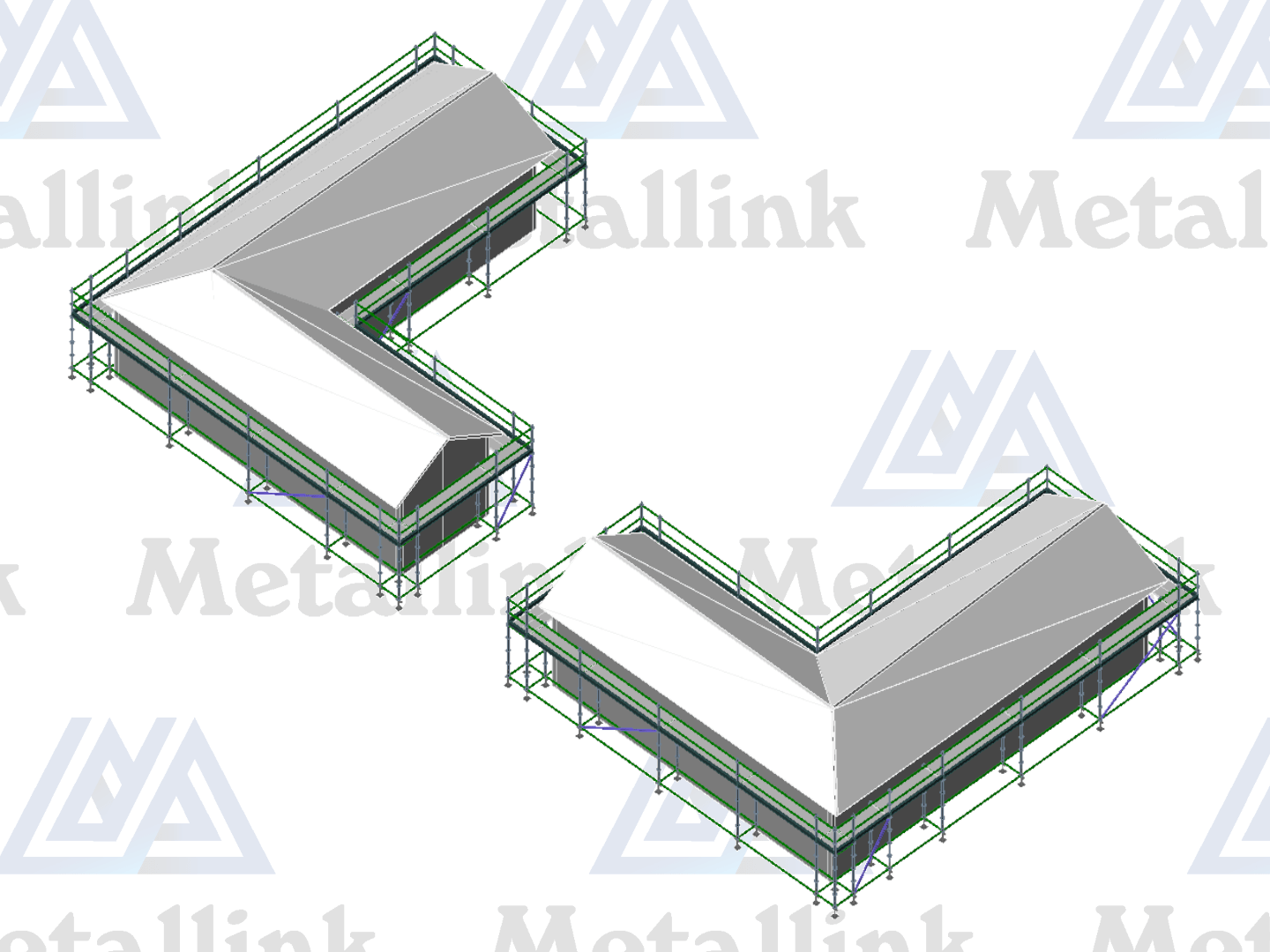

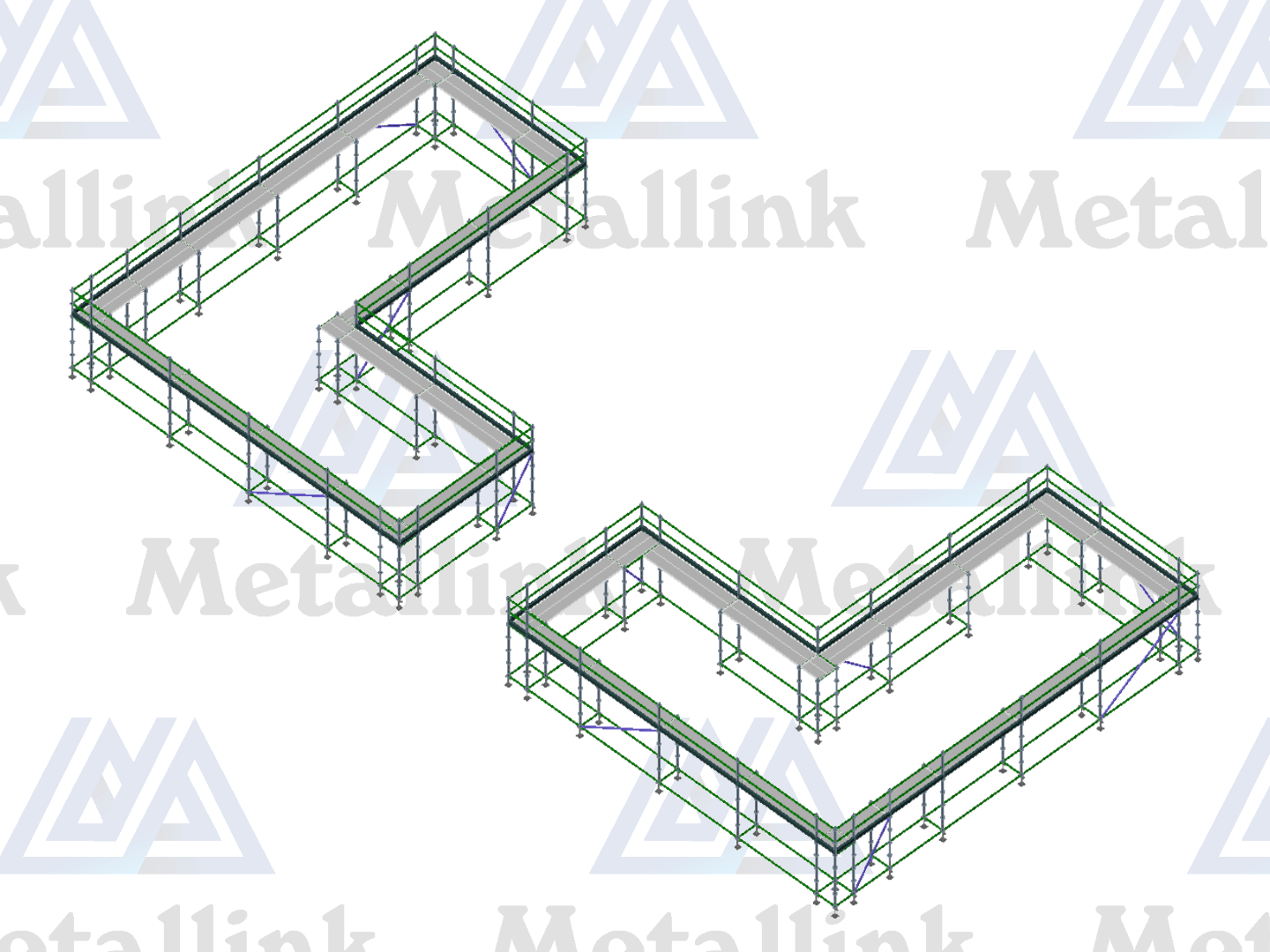

Mode 2:
107.52m Total Length (split into two 53.76m scaffolds) x 0.73m Deep x 3m High
1 Level
44 Bays
2 Scaffolds

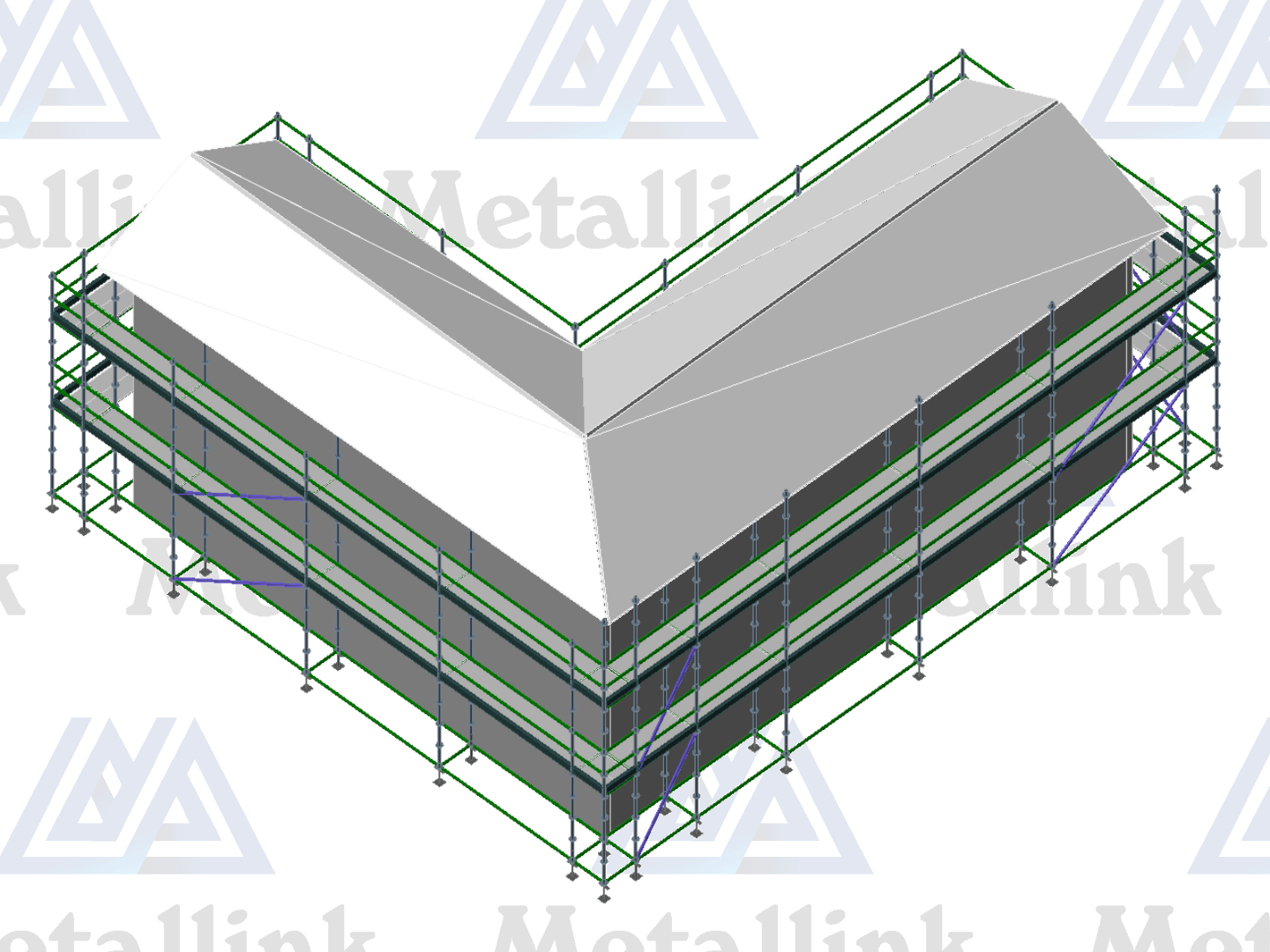

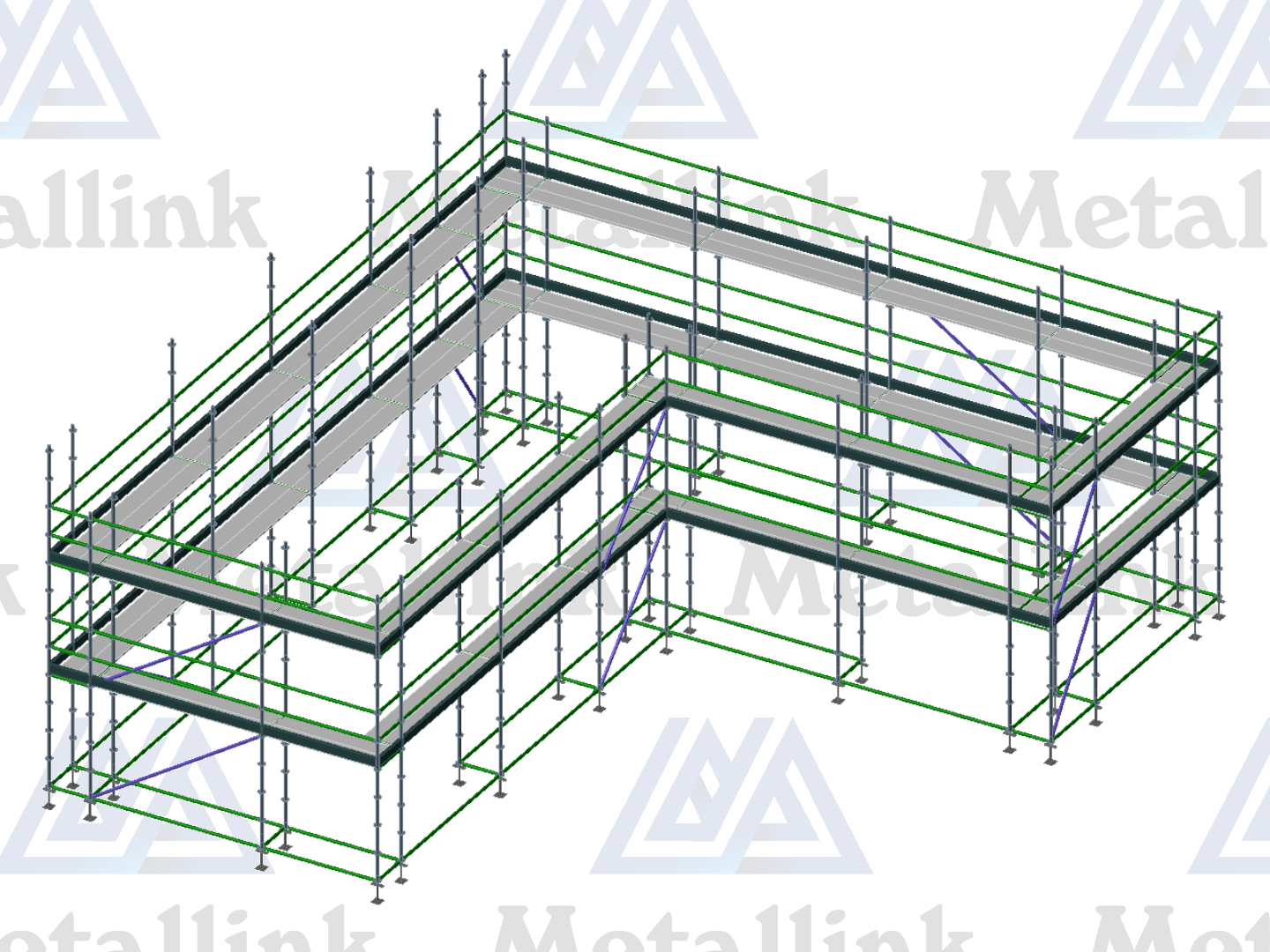

Mode 3:
53.76m Total Length x 0.73m Deep x 5m High
2 Levels
22 Bays

Ringlock Modular Scaffolding System

Components:
Base Jack 0.6m Adjustable | 88pcs
Base Collar | 88pcs
Diagonal Brace 1.40m | 4pcs
Diagonal Brace 2.07m | 2pcs
Diagonal Brace 3.07m | 6pcs
Horizontal Ledger 0.73m | 145pcs
Horizontal Ledger 1.40m | 18pcs
Horizontal Ledger 2.07m | 34pcs
Horizontal Ledger 3.07m | 98pcs
Steel Deck 0.73m | 16pcs
Steel Deck 1.40m | 8pcs
Steel Deck 2.07m | 16pcs
Steel Deck 3.07m | 48pcs
Vertical Standard 2m | 36pcs
Vertical Standard 3m | 52pcs

Extras:
Steel Toeboard 0.73m | 16pcs | $301.76
Steel Toeboard 1.40m | 4pcs | $109.64
Steel Toeboard 2.07m | 8pcs | $274.72
Steel Toeboard 3.07m | 24pcs | $1077.84

Total Weight without Extras: 5478.41kg
Total Weight with Extras: 5837.25kg

Finance available.

House packs can be customised to your exact needs! Send the measurements of your project, and we’ll design a scaffold specially for it, complete with 3D models.
