7.5m Ringlock Scaffold, 3-Level

From: $5,084.58 + GST

7.71m Long x 0.73m Deep x 7m High
3 Levels
3 Bays
Ringlock Modular Scaffolding System

Base Jacks, Plates & Caster Wheels

Scaffolding screw jacks for sale in every variety!

From adjustable 600mm jack bases to 800mm adjustable base jacks – not to mention swivel jacks (which can be adjusted to any angle), plus castor wheels and more.

Whatever you need, you can select your solution below!

With New Zealand-wide delivery from our Auckland warehouse.

600 mm Adjustable Jack Base

Base Collar

$9.60 + GST each

Ringlock Diagonal Braces

0.73M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

2.57M×2.0M Ringlock Diagonal

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

0.73M Ringlock Ledger

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

2.57M Ringlock Ledger

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

2.57M×0.32(W)

Ringlock Standard with Spigot

Vertical standard for ringlock scaffolding.

Rosettes every 1/2 meter for maximum versatility.

Spigot built-in, for connecting multiple standards.

Made of premium hot-dip galvanised steel, for maximum durability and minimum corrosion.

2.0M Ringlock Standard with Spigot

Ringlock Standard with Spigot

Vertical standard for ringlock scaffolding.

Rosettes every 1/2 meter for maximum versatility.

Spigot built-in, for connecting multiple standards.

Made of premium hot-dip galvanised steel, for maximum durability and minimum corrosion.

3.0M Ringlock Standard with Spigot

Toeboards (L-Shaped)

0.73m x 0.15m

Toeboards (L-Shaped)

2.57m x 0.15m

Description

7.71m Long x 0.73m Deep x 7m High
3 Levels
3 Bays
Ringlock Modular Scaffolding System

Components:
Base Jack 0.6m Adjustable | 8pcs
Base Collar | 8pcs
Diagonal Brace 0.73m | 3pcs
Diagonal Brace 2.57m | 3pcs
Horizontal Ledger 0.73m | 28pcs
Horizontal Ledger 2.57m | 24pcs
Steel Deck 2.57m | 18pcs
Vertical Standard 2m | 12pcs
Vertical Standard 3m | 10pcs

Extras:
Steel Toeboard 0.73m | 6pcs | $113.16
Steel Toeboard 2.57m | 9pcs | $339.57

Total Weight without Extras: 1087.08kg
Total Weight with Extras: 1177.11kg

Financing available.

Additional information

Base Jacks, Plates & Caster Wheels

Weight N/A
Dimensions N/A
Options

600 mm Adjustable Jack Base

Base Collar

Weight 1.72 kg
Dimensions 28 × 5.7 × 0.35 cm

Ringlock Diagonal Braces

Weight N/A
Dimensions N/A
Diagonal Options

0.73M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

Weight N/A
Dimensions N/A
Diagonal Options

2.57M×2.0M Ringlock Diagonal

Ledger "O"

Weight N/A
Dimensions N/A
Ledger Options

0.73M Ringlock Ledger

Ledger "O"

Weight N/A
Dimensions N/A
Ledger Options

2.57M Ringlock Ledger

Scaffolding Planks Steel (“O” Hook) Ringlock

Weight N/A
Dimensions N/A
Steel Deck Options

2.57M×0.32(W)

Ringlock Standard with Spigot

Weight N/A
Dimensions N/A
Standard Options

2.0M Ringlock Standard with Spigot

Ringlock Standard with Spigot

Weight N/A
Dimensions N/A
Standard Options

3.0M Ringlock Standard with Spigot

Toeboards (L-Shaped)

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M

Toeboards (L-Shaped)

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M

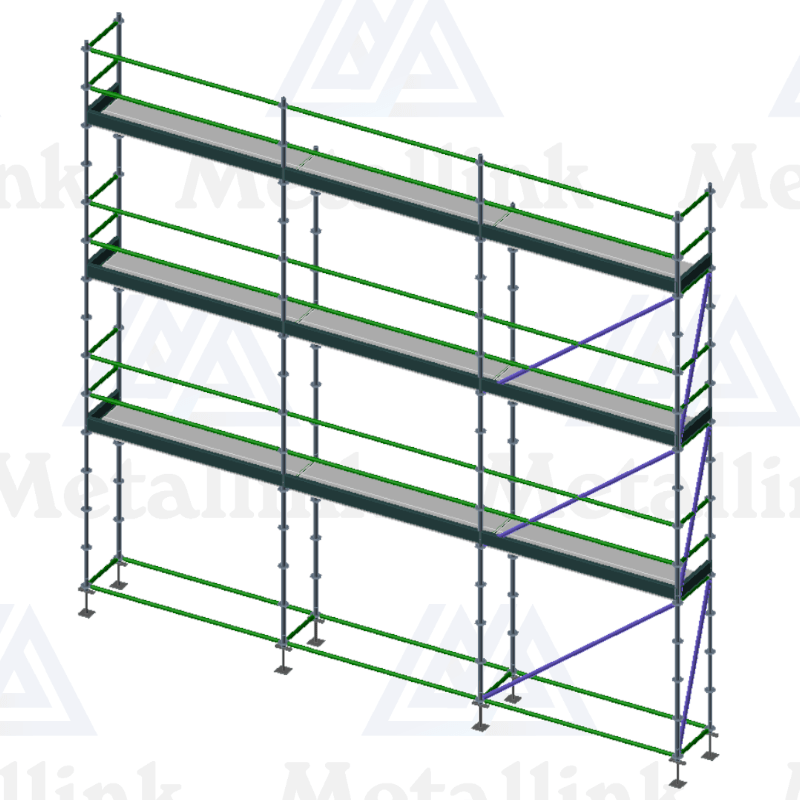

Layout diagram of a 3-storey 7.5m ringlock scaffold for sale.
7.5m Ringlock Scaffold, 3-Level
From: $5,084.58 + GST
