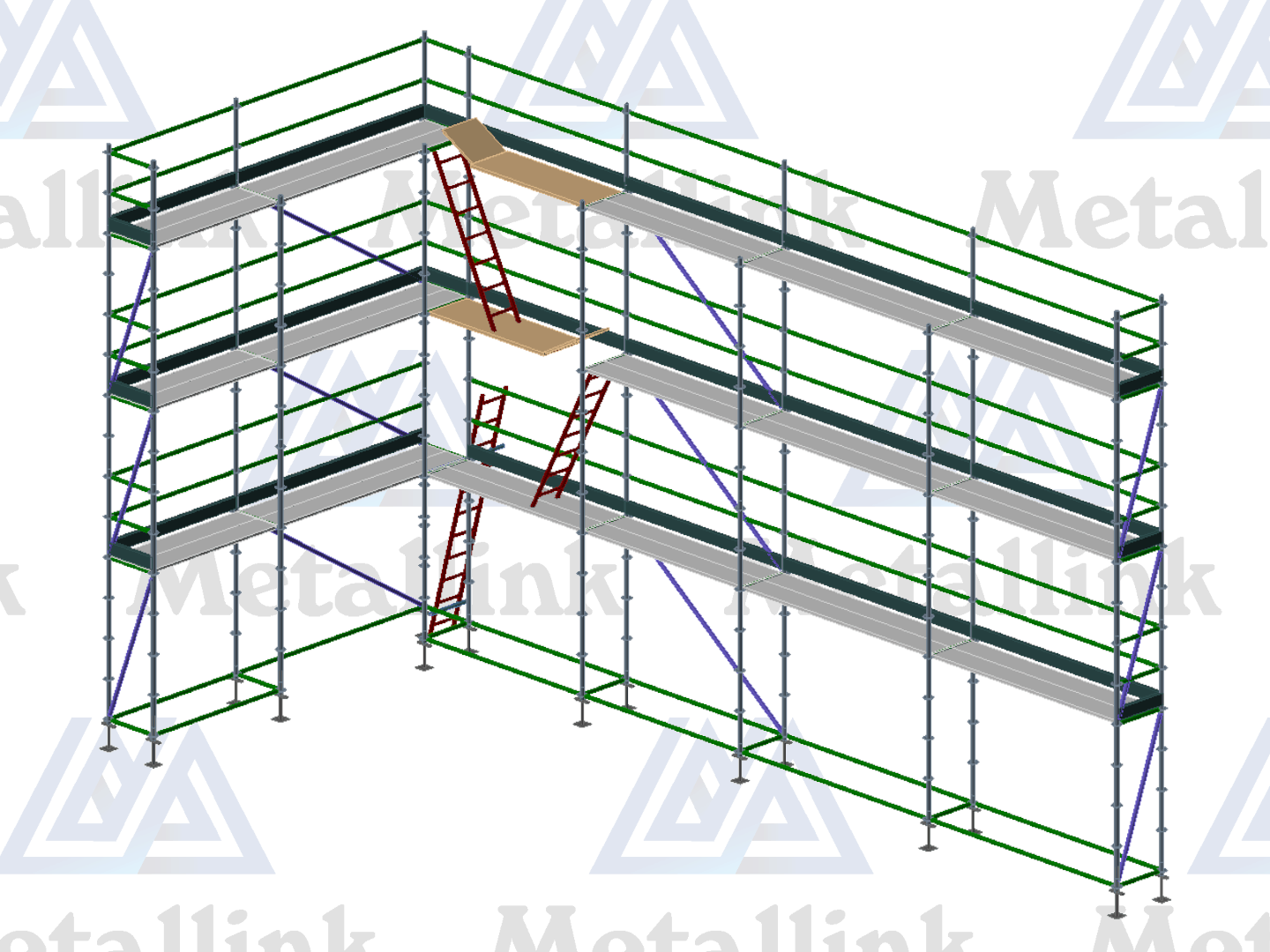

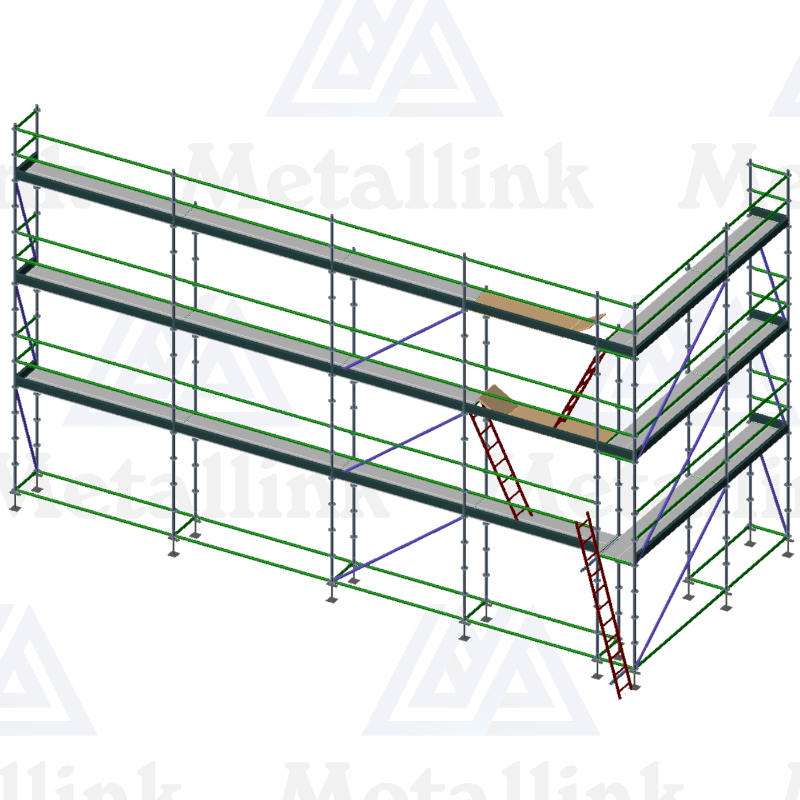

Setup/layout diagram of a three-storey 16m corner ringlock scaffold for sale.

16m Transforming Ringlock Scaffold w/Ladders, 3-Level

From: $9,817.14 + GST

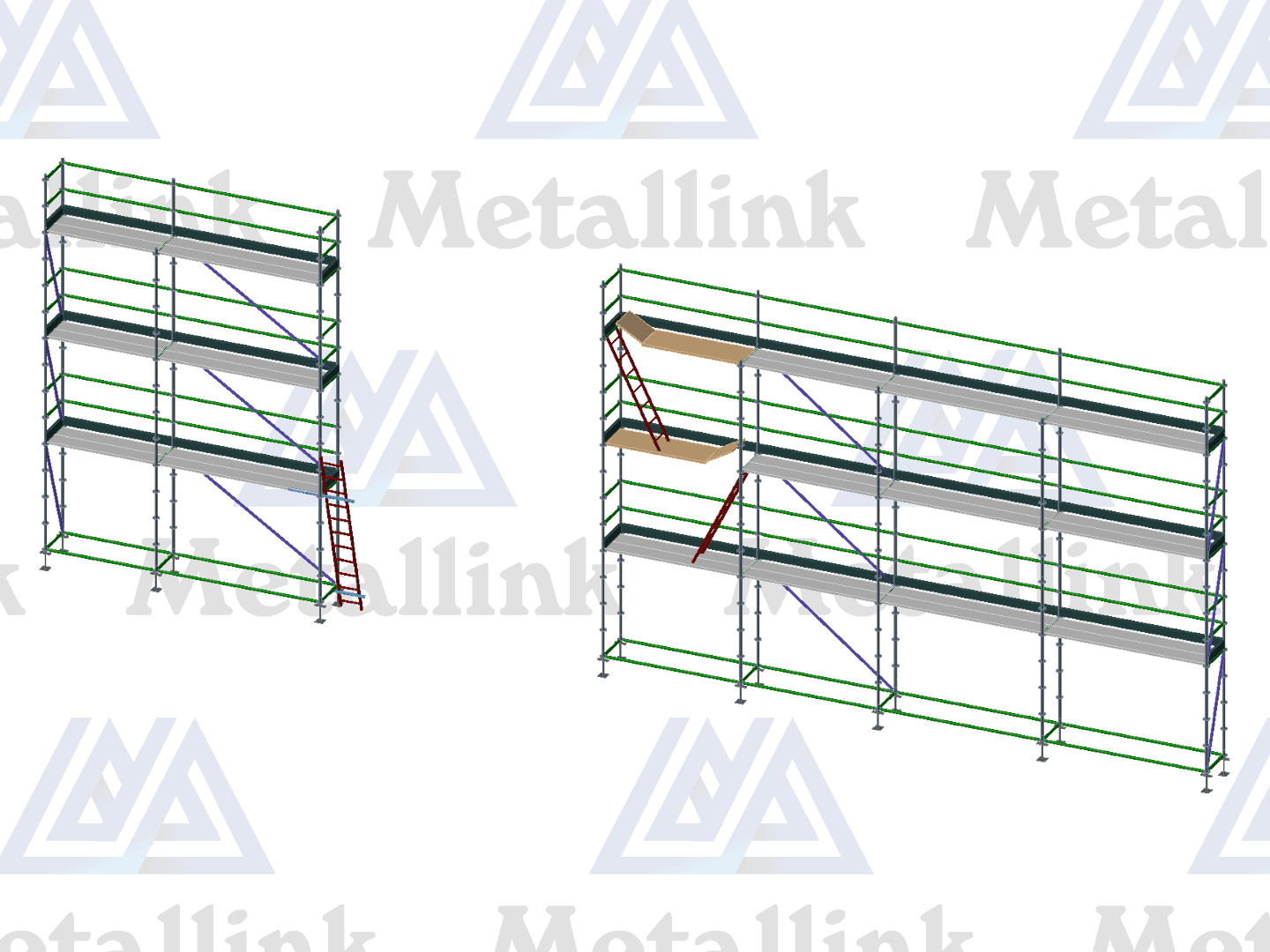

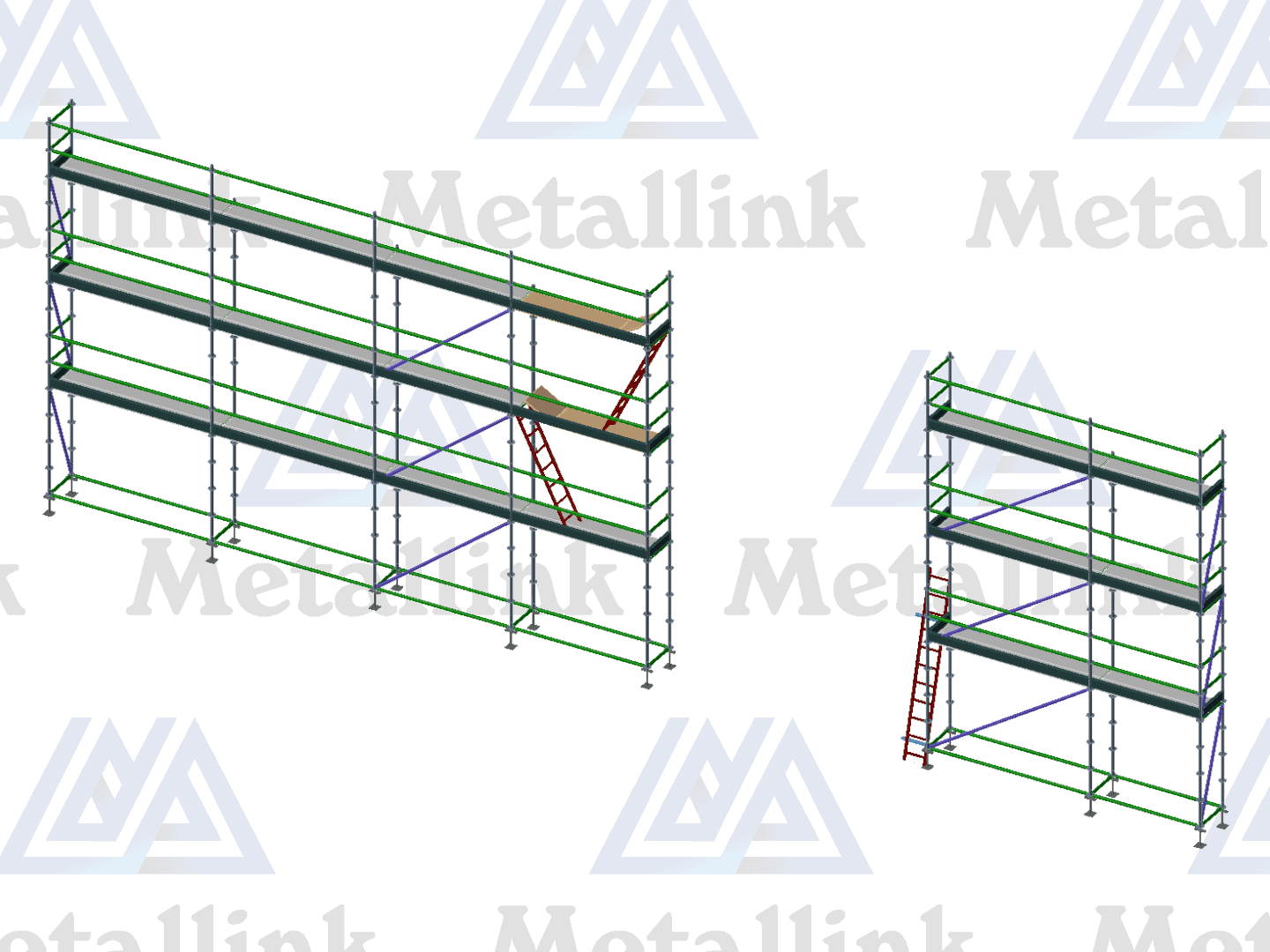

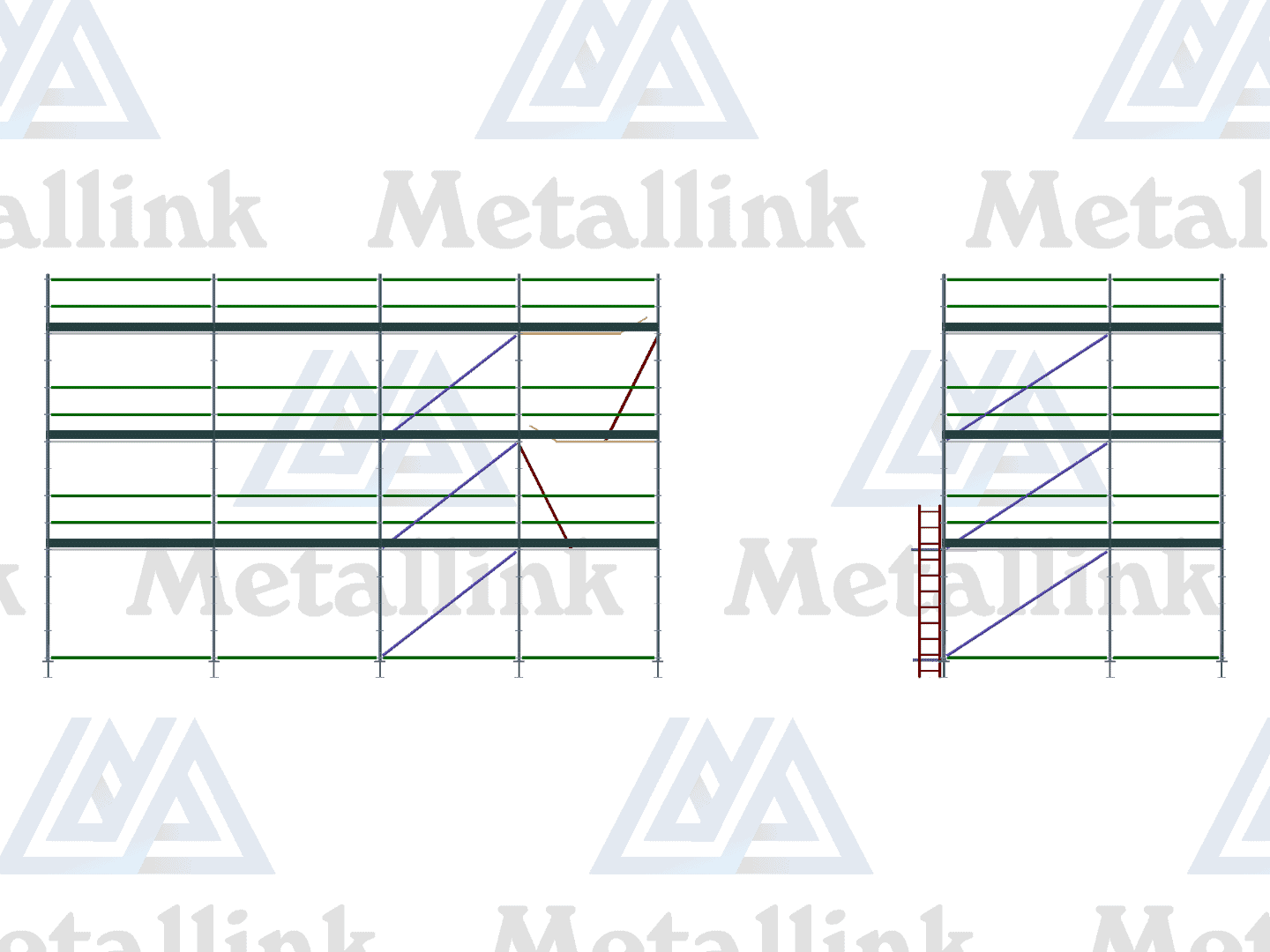

Dual purpose: cover three storeys and 16m of wall around a corner, or turn this pack into two separate scaffolds – one 11m long, the other 5m long. Includes exterior ladder and interior hatches with ladders. With multiple bay sizes for maximum versatility.

16.35m Total Length x 0.73m Bay Depth x 7m Height
3 Levels
6 Bays
Ringlock Modular Scaffolding

Categories: , , ,

Scaffolding Hatch Deck with Ladder

2.57m

Aluminium Ladders

3.0M

Base Jacks, Plates & Caster Wheels

Scaffolding screw jacks for sale in every variety!

From adjustable 600mm jack bases to 800mm adjustable base jacks – not to mention swivel jacks (which can be adjusted to any angle), plus castor wheels and more.

Whatever you need, you can select your solution below!

With New Zealand-wide delivery from our Auckland warehouse.

600 mm Adjustable Jack Base

Base Collar

Base Collar 250mm

Ringlock Diagonal Braces

0.73M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

2.57M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

3.07M×2.0M Ringlock Diagonal

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

0.73M Ringlock Ledger

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

2.07M Ringlock Ledger

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

2.57M Ringlock Ledger

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

3.07M Ringlock Ledger

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

2.07M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

2.57M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

3.07M×0.32(W)

Ringlock Standard with Spigot

Vertical standard for ringlock scaffolding.

Rosettes every 1/2 meter for maximum versatility.

Spigot built-in, for connecting multiple standards.

Made of premium hot-dip galvanised steel, for maximum durability and minimum corrosion.

1.0M Ringlock Standard with Spigot

Ringlock Standard with Spigot

Vertical standard for ringlock scaffolding.

Rosettes every 1/2 meter for maximum versatility.

Spigot built-in, for connecting multiple standards.

Made of premium hot-dip galvanised steel, for maximum durability and minimum corrosion.

3.0M Ringlock Standard with Spigot

Toeboards

0.73m x 0.15m

Toeboards

2.07m x 0.15m

Toeboards

2.57m x 0.15m

Toeboards

3.07m x 0.15m

Description

Dual purpose: cover three storeys and 16m of wall around a corner, or turn this pack into two separate scaffolds – one 11m long, the other 5m long. Includes exterior ladder and interior hatches with ladders. With multiple bay sizes for maximum versatility.

16.35m Total Length x 0.73m Bay Depth x 7m Height
3 Levels
6 Bays
Ringlock Modular Scaffolding

Components:
Aluminium Hatch Deck with Ladder 2.57m | 2pcs
Aluminium Ladder 3m | 1pc
Base Jack 0.6m Adjustable | 16pcs
Base Collar | 16pcs
Diagonal Brace 0.73m | 6pc
Diagonal Brace 2.57m | 3pcs
Diagonal Brace 3.07m | 3pcs
Horizontal Ledger 0.73m | 54pcs
Horizontal Ledger 2.07m | 8pcs
Horizontal Ledger 2.57m | 16pcs
Horizontal Ledger 3.07m | 24pcs
Steel Deck 2.07m | 6pcs
Steel Deck 2.57m | 8pcs
Steel Deck 3.07m | 18pcs
Vertical Standard 1m | 12pcs
Vertical Standard 3m | 32pcs

Extras:
Steel Toeboard 0.73m | 12pcs | $226.32
Steel Toeboard 2.07m | 3pcs | $103.02
Steel Toeboard 2.57m | 6pcs | $226.38
Steel Toeboard 3.07m | 9pcs | $404.19

Total Weight w/o Extras: 2222.35kg
Total Weight w/Extras: 2415.28kg
