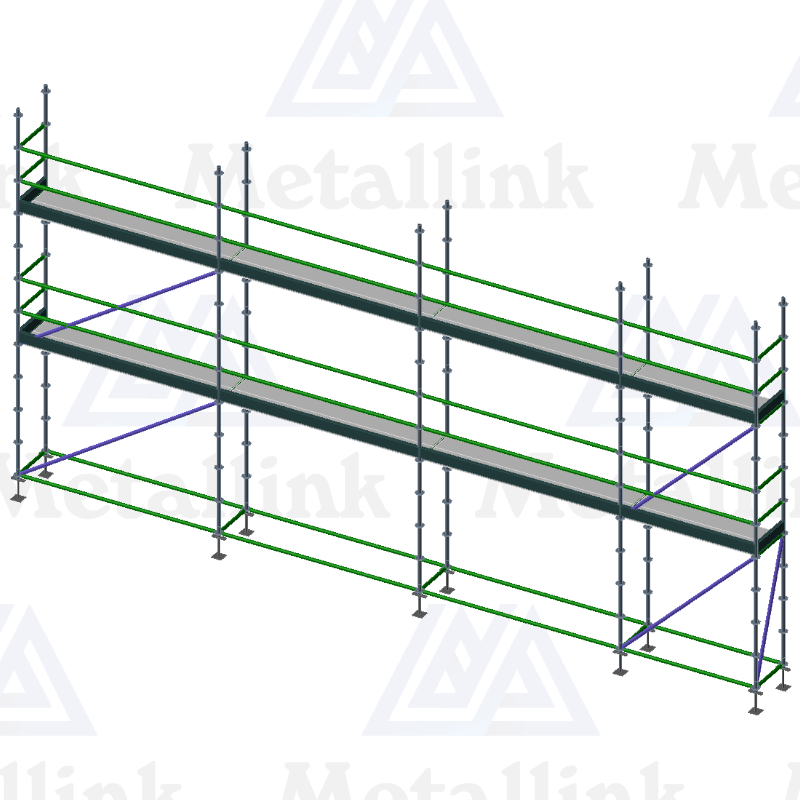

Setup diagram of a two-storey 11m-long scaffold for sale, made of premium ringlock scaffolding.

11m Ringlock Scaffold, 2-Level

From: $4,423.53 + GST

A perfect scaffold for any typical wall of a normal two-storey house. Easily constructed, adjusted and moved. This package is a great pick for versatility.

11.28m Long x 0.73m Deep x 5m High
2 Levels
4 Bays
Ringlock Modular Scaffolding System

Financing available.

Categories: , ,

Base Jacks, Plates & Caster Wheels

Scaffolding screw jacks for sale in every variety!

From adjustable 600mm jack bases to 800mm adjustable base jacks – not to mention swivel jacks (which can be adjusted to any angle), plus castor wheels and more.

Whatever you need, you can select your solution below!

With New Zealand-wide delivery from our Auckland warehouse.

600 mm Adjustable Jack Base

Base Collar

Clear

Ringlock Diagonal Braces

0.73M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

2.07M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

3.07M×2.0M Ringlock Diagonal

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

0.73M Ringlock Ledger

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

2.07M Ringlock Ledger

Ledger "O"

Horizontal ledgers in any size.

"O"-type ringlock scaffolding.

Premium hot-dip galvanised steel for maximum durability and minimum corrosion.

Choose your sizing below!

3.07M Ringlock Ledger

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

2.07M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

3.07M×0.32(W)

Ringlock Standard with Spigot

Vertical standard for ringlock scaffolding.

Rosettes every 1/2 meter for maximum versatility.

Spigot built-in, for connecting multiple standards.

Made of premium hot-dip galvanised steel, for maximum durability and minimum corrosion.

2.5M Ringlock Standard with Spigot

Ringlock Standard with Spigot

Vertical standard for ringlock scaffolding.

Rosettes every 1/2 meter for maximum versatility.

Spigot built-in, for connecting multiple standards.

Made of premium hot-dip galvanised steel, for maximum durability and minimum corrosion.

3.0M Ringlock Standard with Spigot

Toeboards

0.73m x 0.15m

Toeboards

2.07m x 0.15m

Toeboards

3.07m x 0.15m

Description

11.28m Long x 0.73m Deep x 5m High
2 Levels
4 Bays
Ringlock Modular Scaffolding System

Components:
Base Jack 0.6m Adjustable | 10pcs
Base Collar | 10pcs
Diagonal Brace 0.73m | 1pc
Diagonal Brace 2.07m | 2pcs
Diagonal Brace 3.07m | 2pcs
Horizontal Ledger 0.73m | 23pcs
Horizontal Ledger 2.07m | 6pcs
Horizontal Ledger 3.07m | 18pcs
Steel Deck 2.07m | 4pcs
Steel Deck 3.07m | 12pcs
Vertical Standard 2.5m | 10pcs
Vertical Standard 3m | 10pcs

Extras:
Steel Toeboard 0.73m | 4pcs | $75.44
Steel Toeboard 2.07m | 2pcs | $68.68
Steel Toeboard 3.07m | 6pcs | $269.46

Total Weight without Extras: 1094.01kg
Total Weight with Extras: 1179.03kg

Financing available.

Additional information

Base Jacks, Plates & Caster Wheels

Weight N/A
Dimensions N/A
Options

600 mm Adjustable Jack Base

Base Collar

Weight 1.72 kg
Dimensions 28 × 5.7 × 0.35 cm
Base Collar

Base Collar 250mm

Ringlock Diagonal Braces

Weight N/A
Dimensions N/A
Diagonal Options

0.73M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

Weight N/A
Dimensions N/A
Diagonal Options

2.07M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces

Weight N/A
Dimensions N/A
Diagonal Options

3.07M×2.0M Ringlock Diagonal

Ledger "O"

Weight N/A
Dimensions N/A
Ledger Options

0.73M Ringlock Ledger

Ledger "O"

Weight N/A
Dimensions N/A
Ledger Options

2.07M Ringlock Ledger

Ledger "O"

Weight N/A
Dimensions N/A
Ledger Options

3.07M Ringlock Ledger

Scaffolding Planks Steel (“O” Hook) Ringlock

Weight N/A
Dimensions N/A
Steel Deck Options

2.07M×0.32(W)

Scaffolding Planks Steel (“O” Hook) Ringlock

Weight N/A
Dimensions N/A
Steel Deck Options

3.07M×0.32(W)

Ringlock Standard with Spigot

Weight N/A
Dimensions N/A
Standard Options

2.5M Ringlock Standard with Spigot

Ringlock Standard with Spigot

Weight N/A
Dimensions N/A
Standard Options

3.0M Ringlock Standard with Spigot

Toeboards

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M

Toeboards

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M

Toeboards

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M
