Aluminium Scaffolding 16m, Transforming Ringlock Scaffold w/Ladders, 2-Level

From: $14,851.80 + GST

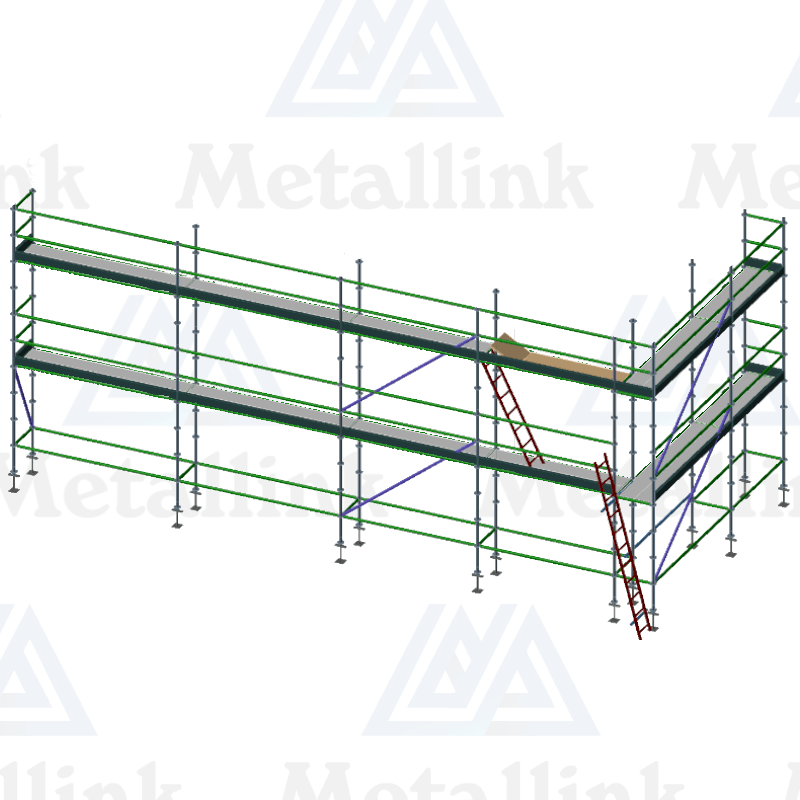

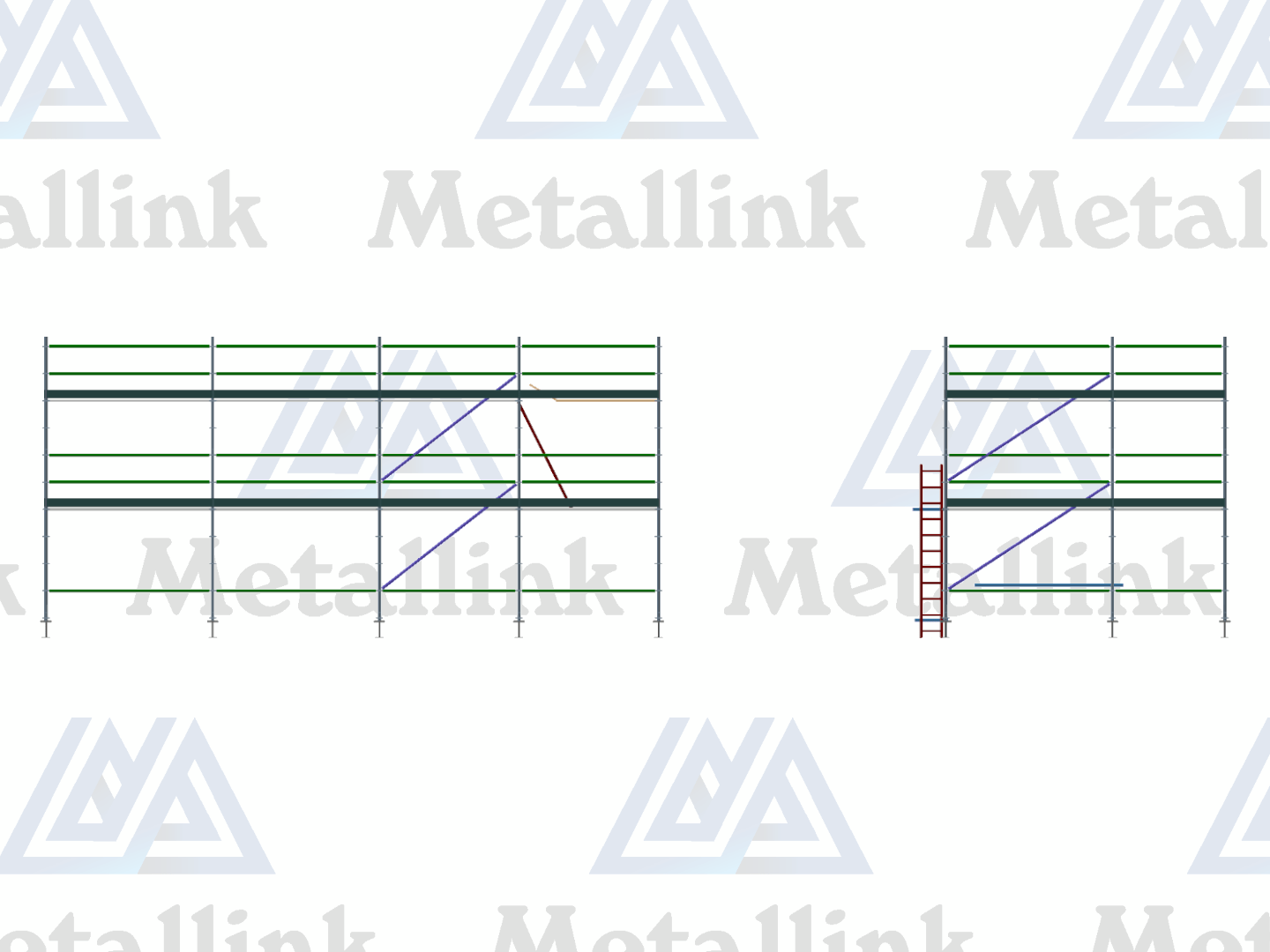

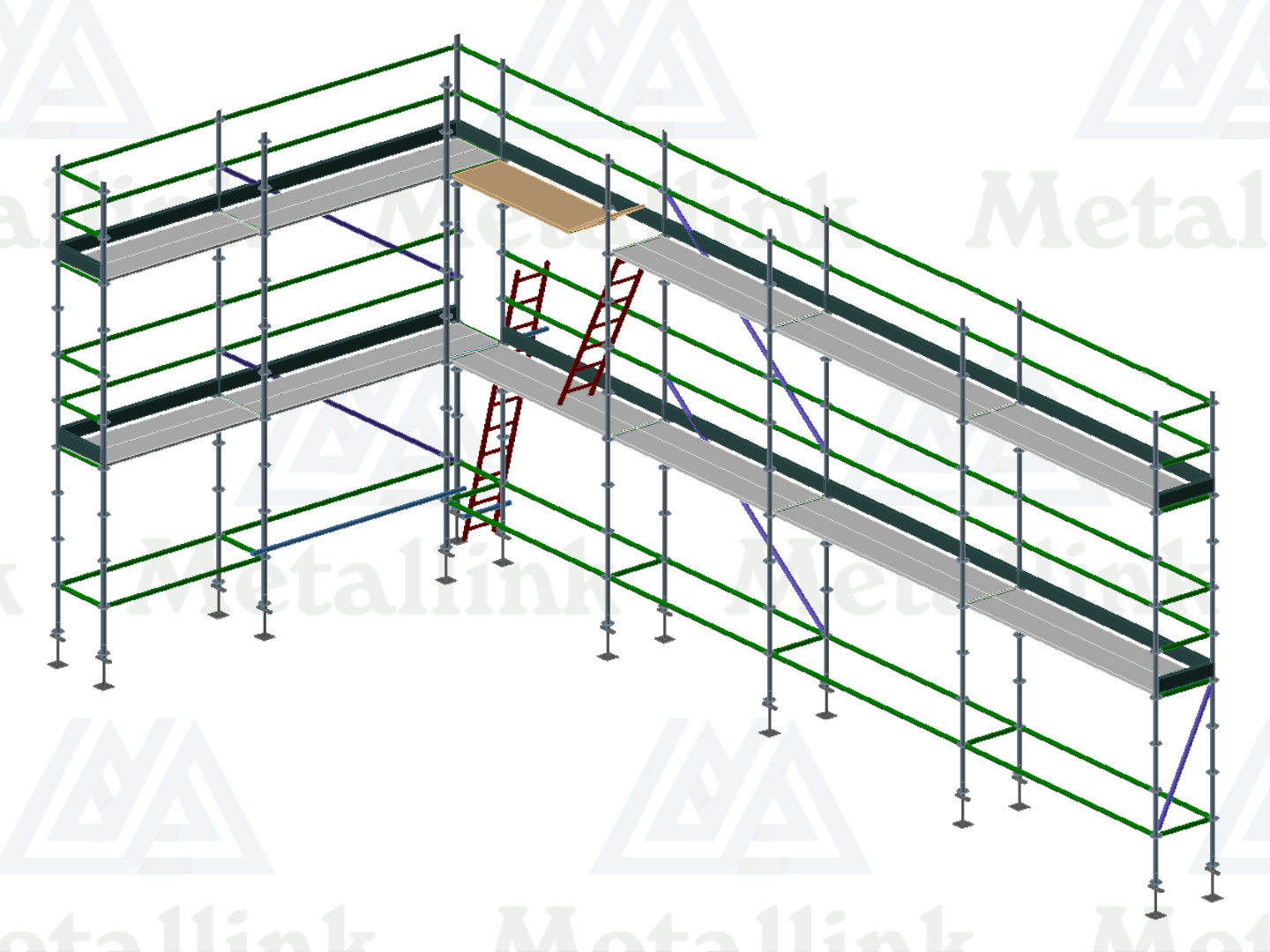

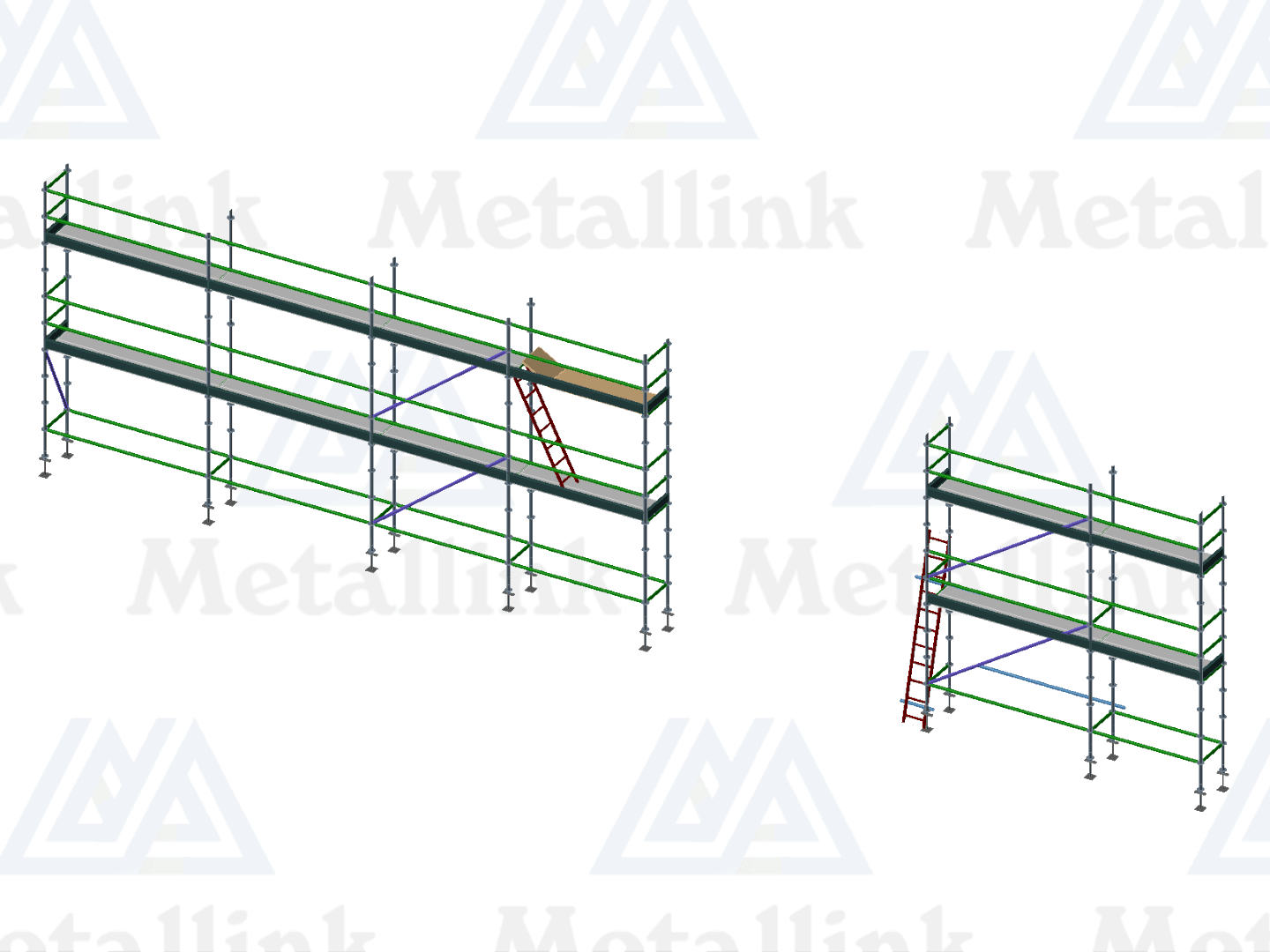

Dual purpose scaffold for sale: cover two levels and 16m of wall around a corner, or turn this pack into two separate scaffolds – one 11m long, another 5m long. Includes exterior ladder and interior hatch with ladder. Made of lightweight premium aluminium scaffolding.

16.35m Total Length x 0.73m Bay Depth x 5m Pole Height
2 Levels
6 Bays
Ringlock Modular Scaffolding Package

Scaffolding Hatch Deck with Ladder

3.07m

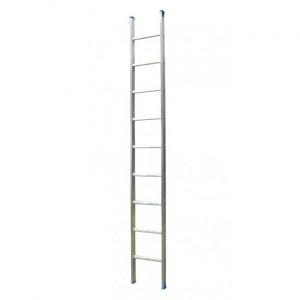

Aluminium Ladders

3.0M

Base Jacks, Plates & Caster Wheels

Scaffolding screw jacks for sale in every variety!

From adjustable 600mm jack bases to 800mm adjustable base jacks – not to mention swivel jacks (which can be adjusted to any angle), plus castor wheels and more.

Whatever you need, you can select your solution below!

With New Zealand-wide delivery from our Auckland warehouse.

600 mm Adjustable Jack Base

Base Collar - Aluminium

$18.00 + GST each

Ringlock Diagonal Braces - Aluminium

0.73M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces - Aluminium

2.07M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces - Aluminium

3.07M×2.0M Ringlock Diagonal

Ledger "O" - Aluminium

Horizontal ledgers in lightweight aluminium.

"O"-type ringlock scaffolding.

Choose your sizing below!

0.73M Ringlock Ledger

Ledger "O" - Aluminium

Horizontal ledgers in lightweight aluminium.

"O"-type ringlock scaffolding.

Choose your sizing below!

2.07M Ringlock Ledger

Ledger "O" - Aluminium

Horizontal ledgers in lightweight aluminium.

"O"-type ringlock scaffolding.

Choose your sizing below!

3.07M Ringlock Ledger

Scaffolding Planks (“O” Hook) Ringlock - Aluminium

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these lightweight heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

2.07M×0.32(W)

Scaffolding Planks (“O” Hook) Ringlock - Aluminium

Ready for an upgrade from flimsy, short-term wooden decks?

Check out these lightweight heavy-duty steel scaffold planks for sale.

These are "O" hook planks for the ringlock scaffolding system. Made with hot-dip galvanised steel for maximum durability and minimum corrosion.

320x76mm (1.5mm inner thickness).

Choose your length below!

3.07M×0.32(W)

Ringlock Standard (with Spigot) - Aluminium

Vertical standard for ringlock scaffolding.

Made of lightweight aluminium.

Spigot built-in, for connecting multiple standards.

Rosettes every 1/2 meter for maximum versatility.

2.0M Ringlock Standard with Spigot

Ringlock Standard (with Spigot) - Aluminium

Vertical standard for ringlock scaffolding.

Made of lightweight aluminium.

Spigot built-in, for connecting multiple standards.

Rosettes every 1/2 meter for maximum versatility.

3.0M Ringlock Standard with Spigot

Toeboards

0.73m x 0.15m

Toeboards

2.07m x 0.15m

Toeboards

3.07m x 0.15m

Description

Dual purpose scaffold for sale: cover two levels and 16m of wall around a corner, or turn this pack into two separate scaffolds – one 11m long, another 5m long. Includes exterior ladder and interior hatch with ladder. Made of lightweight premium aluminium scaffolding.

16.35m Total Length x 0.73m Bay Depth x 5m Pole Height
2 Levels
6 Bays
Ringlock Modular Scaffolding

Components:
Aluminium Hatch Deck with Ladder 3.07m | 1pc
Aluminium Ladder 3m | 1pc
Base Jack 0.6m Adjustable | 16pcs
Base Collar | 16pcs
Diagonal Brace 0.73m | 1pc
Diagonal Brace 2.07m | 2pcs
Diagonal Brace 3.07m | 2pcs
Horizontal Ledger 0.73m | 38pcs
Horizontal Ledger 2.07m | 20pcs
Horizontal Ledger 3.07m | 40pcs
Aluminium Plank 2.07m | 8pcs
Aluminium Plank 3.07m | 14pcs
Vertical Standard 2m | 16pcs
Vertical Standard 3m | 16pcs

Extras:
Steel Toeboard 0.73m | 7pcs | $120.05
Steel Toeboard 2.07m | 4pcs | $137.36
Steel Toeboard 3.07m | 8pcs | $359.28

Total Weight w/o Extras: 899.22kg
Total Weight w/Extras: 1026.01kg

Financing available.

Additional information

Scaffolding Hatch Deck with Ladder

Weight N/A
Dimensions N/A
Hatch Options

3.07m

Aluminium Ladders

Weight N/A
Ladder Options

3.0M

Base Jacks, Plates & Caster Wheels

Weight N/A
Dimensions N/A
Options

600 mm Adjustable Jack Base

Base Collar - Aluminium

Weight .75 kg
Dimensions 28 × 5.7 × 0.35 cm

Ringlock Diagonal Braces - Aluminium

Weight N/A
Diagonal Options

0.73M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces - Aluminium

Weight N/A
Diagonal Options

2.07M×2.0M Ringlock Diagonal

Ringlock Diagonal Braces - Aluminium

Weight N/A
Diagonal Options

3.07M×2.0M Ringlock Diagonal

Ledger "O" - Aluminium

Weight N/A
Ledger Options

0.73M Ringlock Ledger

Ledger "O" - Aluminium

Weight N/A
Ledger Options

2.07M Ringlock Ledger

Ledger "O" - Aluminium

Weight N/A
Ledger Options

3.07M Ringlock Ledger

Scaffolding Planks (“O” Hook) Ringlock - Aluminium

Weight N/A
Dimensions N/A
Steel Deck Options

2.07M×0.32(W)

Scaffolding Planks (“O” Hook) Ringlock - Aluminium

Weight N/A
Dimensions N/A
Steel Deck Options

3.07M×0.32(W)

Ringlock Standard (with Spigot) - Aluminium

Weight N/A
Standard Options

2.0M Ringlock Standard with Spigot

Ringlock Standard (with Spigot) - Aluminium

Weight N/A
Standard Options

3.0M Ringlock Standard with Spigot

Toeboards

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M

Toeboards

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M

Toeboards

Weight N/A
Dimensions N/A
Toe Boards Options

0.73M×0.15M, 1.09M×0.15M, 1.40M×0.15M, 1.57M×0.15M, 2.07M×0.15M, 2.57M×0.15M, 3.07M×0.15M
